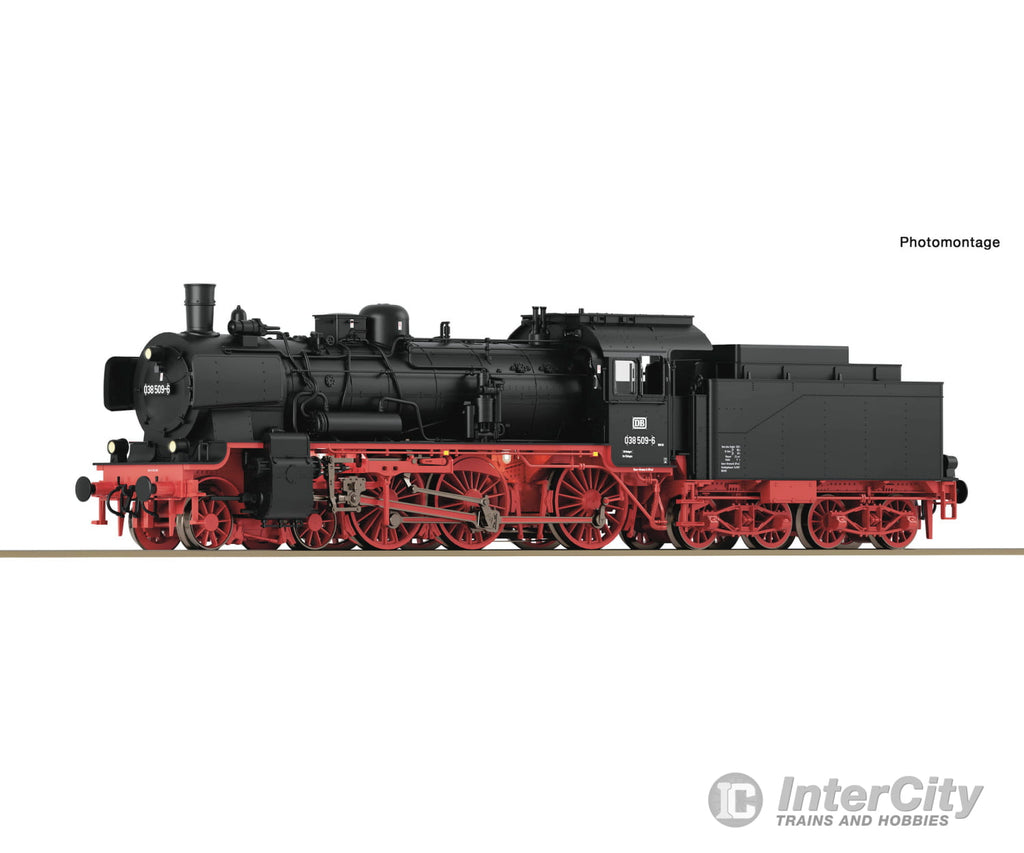

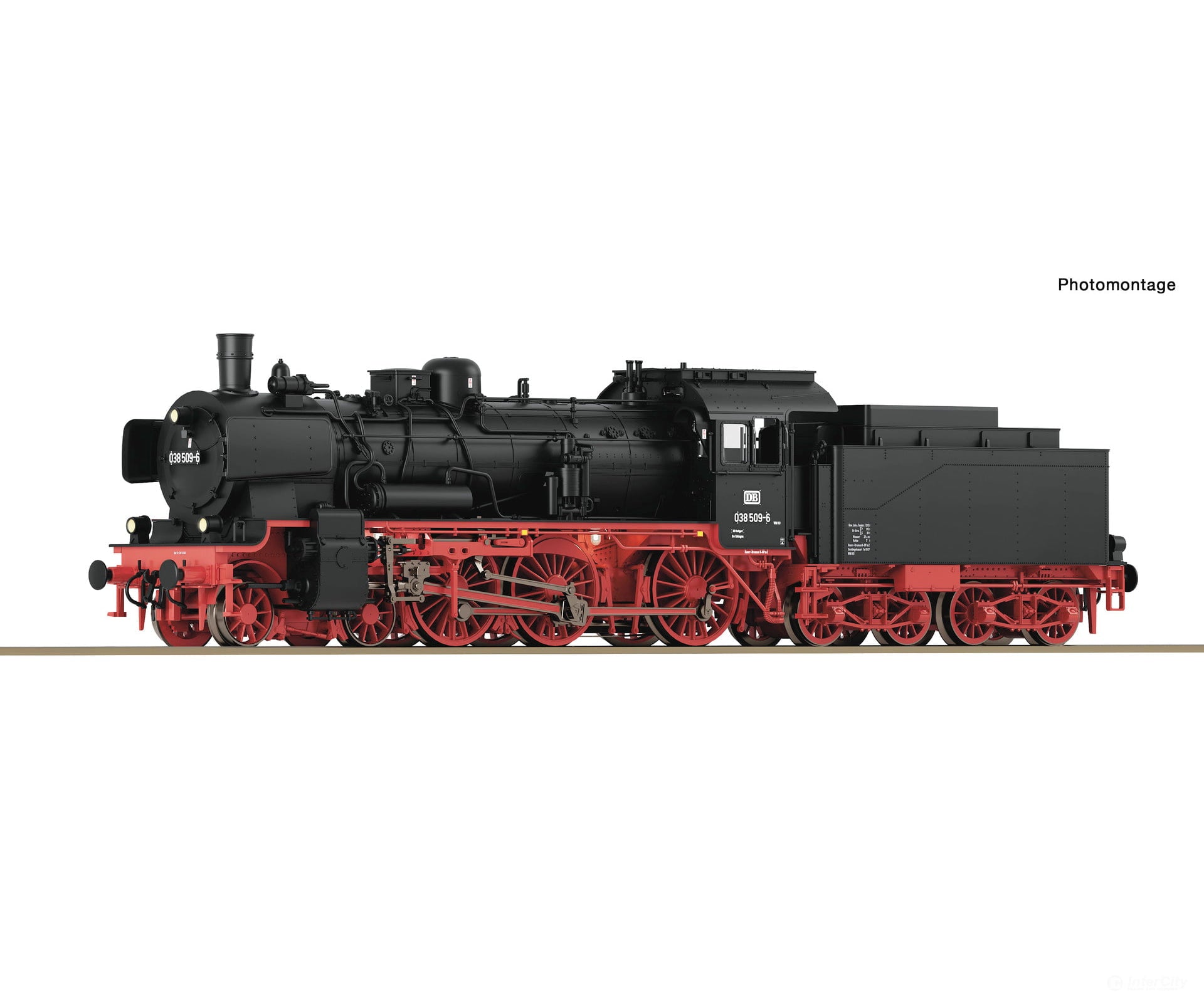

Roco 79380 HO Steam locomotive 038 509-6, DB , Era 4 (Marklin AC Sound)

Steam locomotive 038 509 of the German Federal Railway.

Edition model!

• Completely new design
• Finely detailed model with many separately applied plug-in parts
• Wheels with fine spokes
• Design with riveted tender and "Witte" smoke deflectors
• With switchable driver's cab and valve gear lighting in digital mode
• With newly developed dynamic steam for even more authentic steam emission from the chimney

For a long time, the class 038 steam locomotives with their riveted tenders and "Witte" smoke deflectors were standard on German branch lines. They usually hauled passenger trains and were therefore not replaceable in the local service for a long time. It was not until the increasing modernization at the Deutsche Bundesbahn that they were replaced by diesel and electric locomotives

General data

• Coupling: In-house produced coupling and close coupling mechanism
• Minimum radius: 358 mm
• Flywheel: yes
• Number of driven axles: 2
• Number of axles with traction tyres: 2
• Article number: 79380
• Scale: H0
• Epoch: IV
• Railway Company: DB

Electrical

• Switchable smoke generator: yes
• Head light: Both sides of the vehicle are equipped with direction dependent triple headlights.
• LED head light: yes
• Interior lighting: Yes, LED, Digital switchable, Driver's cab lighting
• Control: AC
• Interface: Electrical interface for traction units PluX22
• Digital decoder: PluX22
• Decoder-Type: MS450P22
• Sound: yes
• Buffer capacitor: yes

Measurements

• Length over buffer: 214 mm
