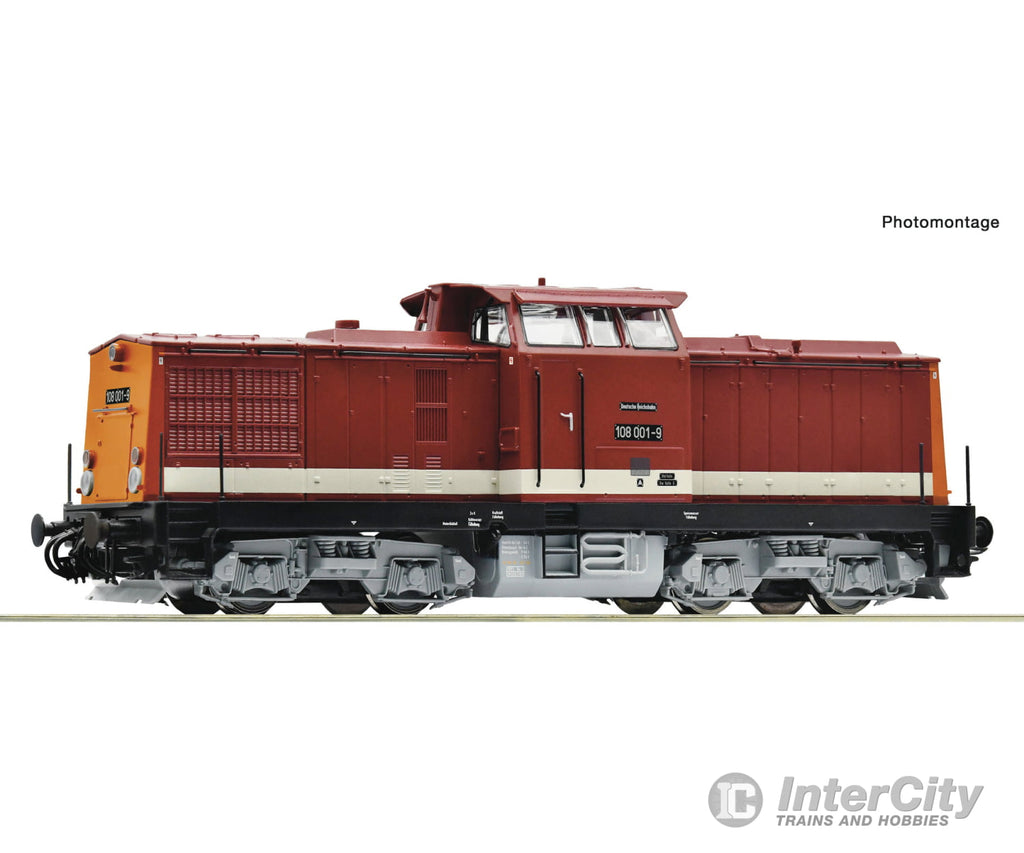

Roco 78818 HO Diesel locomotive 108 001-9, DR , AC Digital Sound

Diesel locomotive 108 001 of the railway company of the German Democratic Republic (Deutsche Reichsbahn).

• Finely detailed model with many separately applied plug-in parts
• Free-standing, delicately-crafted handle rails
• Individually switchable headlight or tail light in digital mode

The railway company of the German Democratic Republic designated four-axle mainline diesel locomotives for medium service as class V 100(from 1970: class 110). In contrast to the original class 110, class 108 locomotives had a reversing gearbox and a consumption-optimised engine with reduced power. In line with its new use as a shunting locomotive, the boiler was no longer needed and additional radiator groups and a preheating unit were installed in its place.

General data

• Coupling: NEM shaft 362 with close coupling mechanism
• Minimum radius: 358 mm
• Flywheel: yes
• Number of driven axles: 2
• Number of axles with traction tyres: 1
• Article number: 78818
• Scale: H0
• Epoch: IV
• Railway Company: DR

Electrical

• Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
• LED head light: yes
• Additional light function: yes
• Control: AC
• Interface: Electrical interface for traction units PluX22
• Digital decoder: PluX22
• Sound: yes
• Buffer capacitor: yes

Measurements

• Length over buffer: 164 mm
