Description

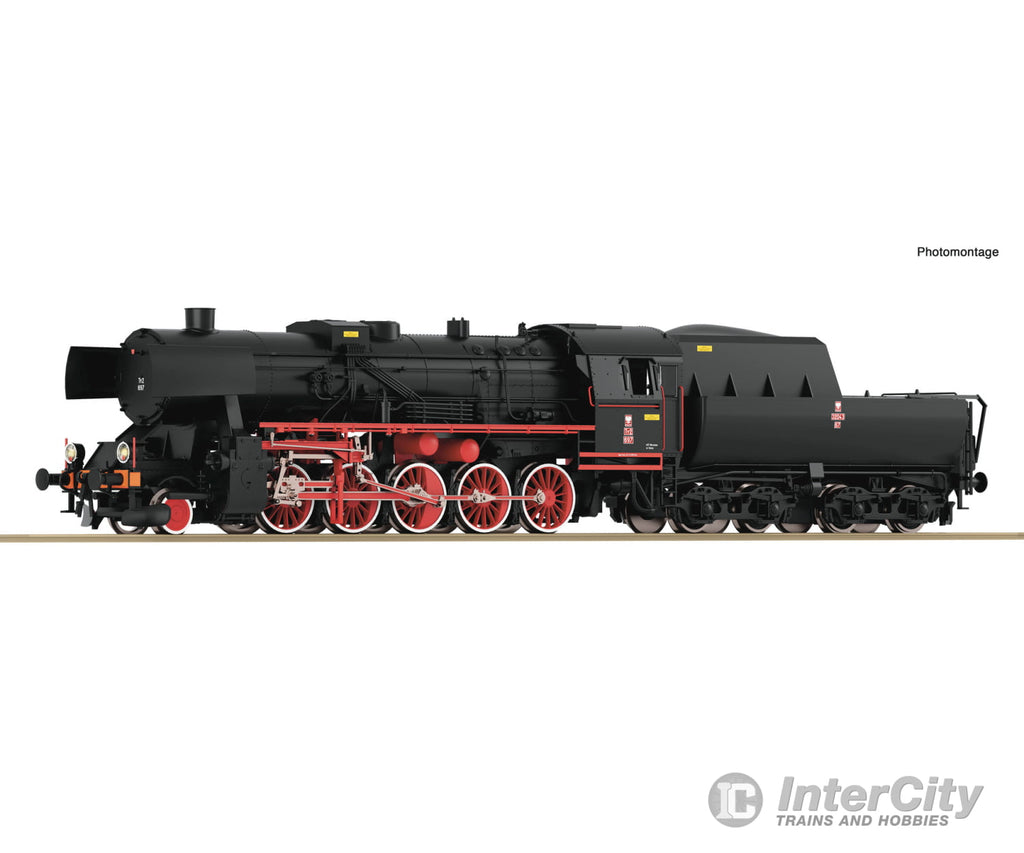

Steam locomotive Ty2 (ex DRB BR 52) of the Polish State Railways.
Form variation!
Update!
Drive on two axles of the tender and via cardan shaft on all five locomotive driving axles.
With two large lamps at the front and also on the tender at the rear
Generator and air dryer with oil separator attached to the left running board
Track scraper with rounded scraper plates
Authentic, internally rounded smoke deflectors
With PluX16 sound decoder for the first time
Z21 driver's cab available
Smoke generator can be retrofitted
The steam locomotives of the Ty2 class of the Polish State Railways were used from 1942. It is a class 52 war locomotive of the German State Railway. After the Second World War, 1,207 locomotives from this class remained with the PKP. Until steam traction was no longer used, the Ty2 was the largest locomotive series in Poland. Several locomotives from this class have survived to this day.
- Coupling: Close coupler motion link between locomotive and tender, NEM shaft 362 with close coupling mechanism at the tender
- Minimum radius: 358 mm
- Flywheel: yes
- Z-21 Cab: yes
- Number of driven axles: 7
- Number of axles with traction tyres: 2
- Article number: 78108
- Scale: H0
- Epoch: III-IV
- Railway Company: PKP
General data
- Smoke generator Article number (digital): Seuthe no. 11
- Smoke generator retrofittable: yes
- Head light: Direction dependent dual headlights
- LED head light: yes
- Control: AC
- Interface: Electrical interface for traction units PluX16
- Digital decoder: PluX16
- Sound: yes
- Buffer capacitor: yes
Electrical
- Length over buffer: 265 mm
Measurements
