Description

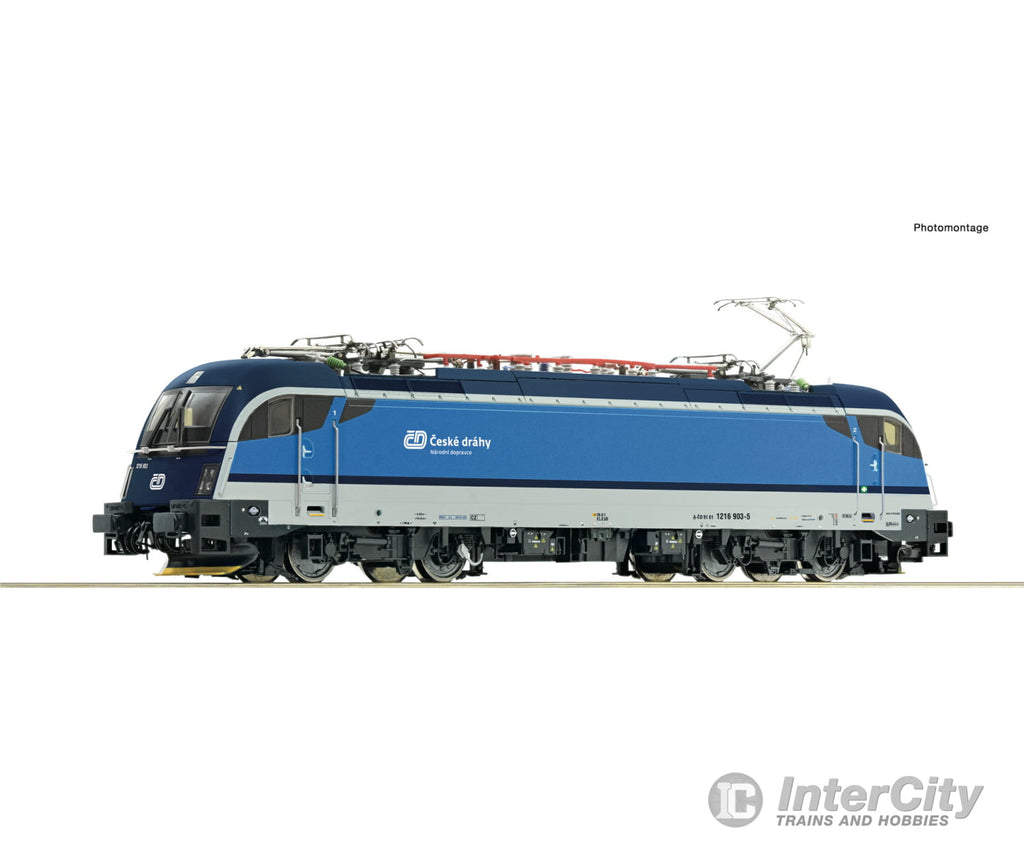

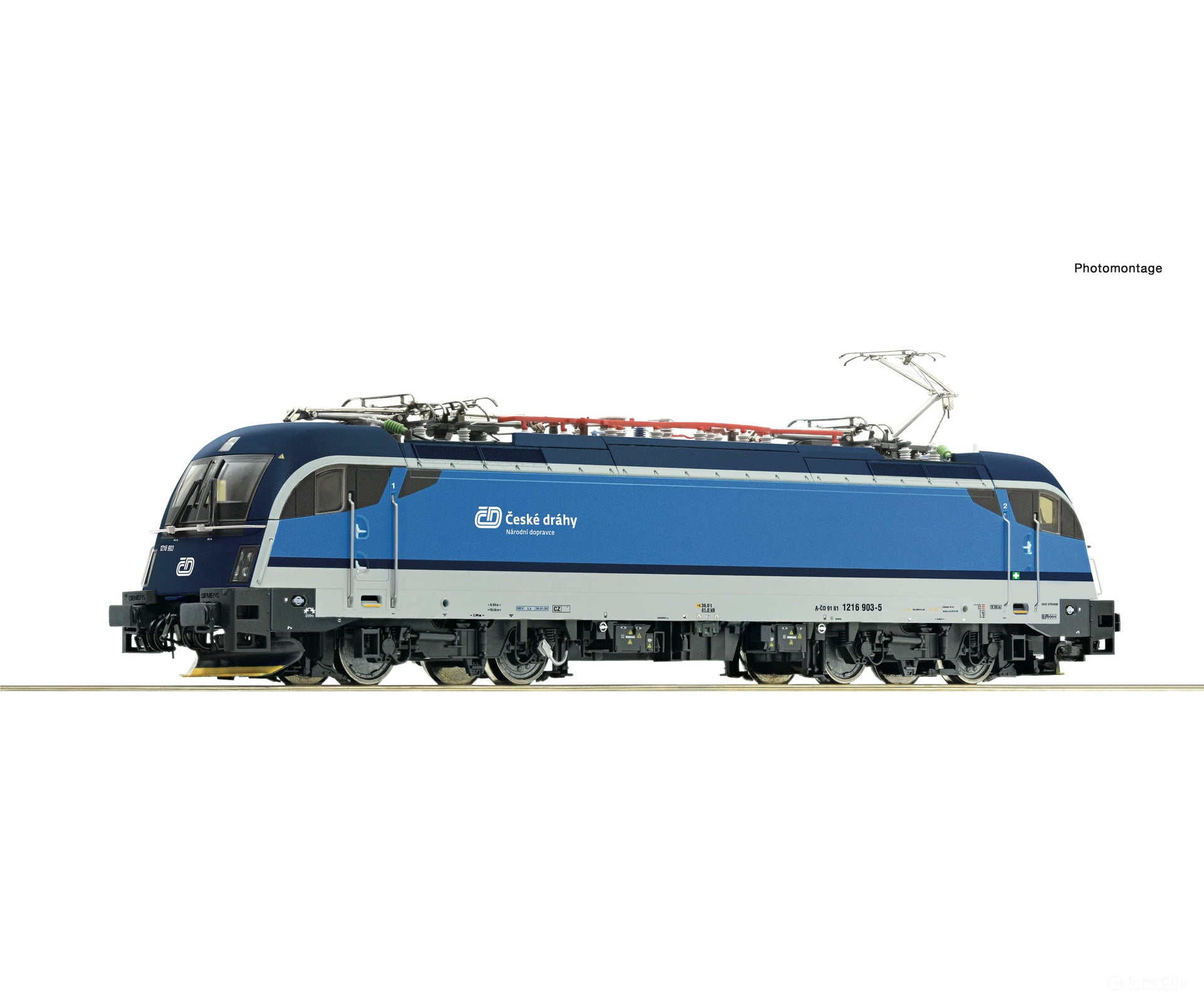

Electric locomotive 1216 903 of the Czech State Railways.
"Najbrt" design
Elaborate roof garden with four pantographs
Finely-detailed model with separately attached handle rails
Switchable high beam and individually switchable headlight or tail light in digital mode
The electric locomotives from Siemens, type ES64U4 were used as the class 1216 (Taurus III) by the ÖBB and other European railway transport companies and are multi-system three-phase current general-purpose locomotives based on technology from the Siemens EuroSprinter family. The locomotives are able to achieve a top speed of 230 km/h with a power output of 6,400 kW.
In September 2019, the Czech State Railways purchased locomotives 1216 902 and 903 from Rail Transport Service GmbH (RTS). After a thorough overhaul and repainting in the current Najbrt design, they are now mostly used in EuroCity traffic.
- Coupling: NEM shaft 362 with close coupling mechanism
- Minimum radius: 358 mm
- Flywheel: yes
- Number of driven axles: 3
- Number of axles with traction tyres: 2
- Article number: 7520012
- Scale: H0
- Epoch: VI
- Railway Company: CD
General data
- Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
- LED head light: yes
- Additional light function: yes
- Control: AC
- Interface: Electrical interface for traction units PluX22
- Digital decoder: PluX22
- Decoder-Type: MS450P22
- Sound: yes
- Buffer capacitor: yes
Electrical
- Length over buffer: 225 mm
Measurements
