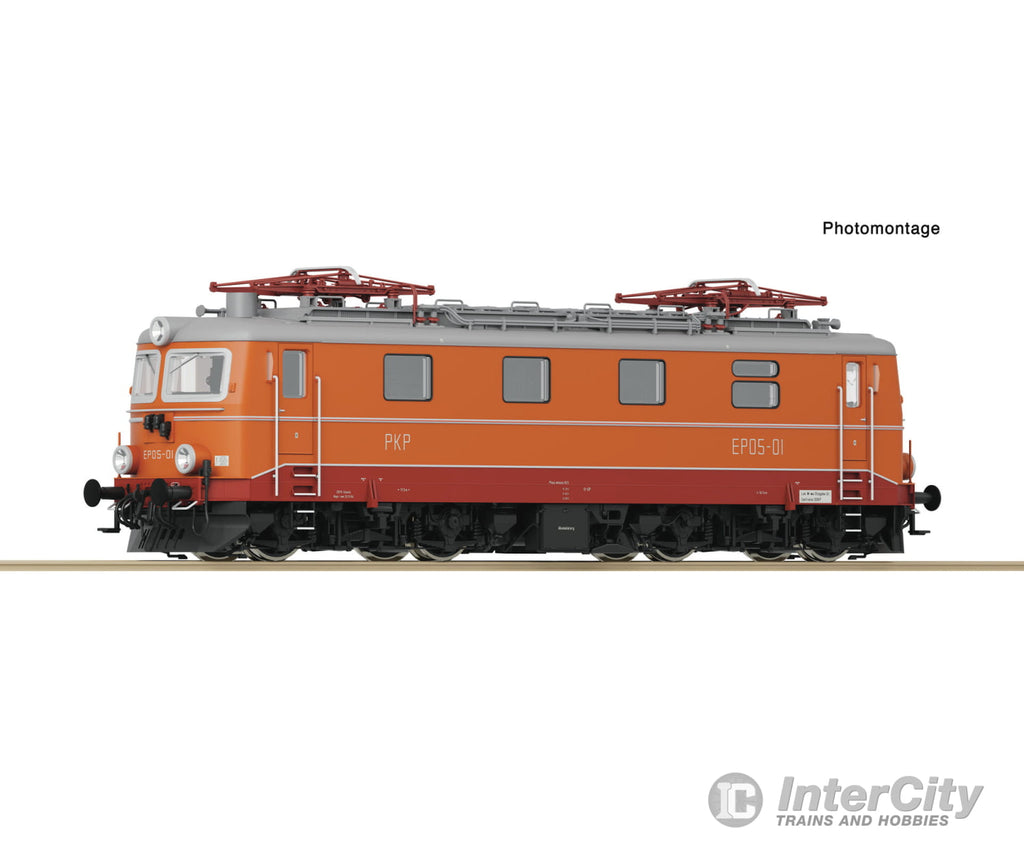

Roco 7510083 HO Electric locomotive EP05-01, PKP , DCC Digital Sound

Electric locomotive EP05-01 of the Polish State Railways.

New design!

• Elaborate painting and printing
• Delicate design of the bogies and the spoked wheels
• Fine metal wheels with low wheel flanges
• Completely newly developed pantographs with an innovative fastening
• In digital operation with switchable headlights/taillights and separately switchable driver's cab and engine room illumination

To facilitate their operation on the Centralna Magistrala Kolejowa line, which connects Warsaw with Kraków and Katowice and was built between 1971 and 1977, the EU05 locomotives were modified to achieve a maximum speed of 160 km/h. This conversion took place at the Gdańsk repair works between 1973 and 1977, where the gear ratio was adjusted. Due to their role in express train services, these locomotives received the new class designation EP05 and were repainted in orange livery, replacing their previous two-tone green paint scheme.

General data

• Coupling: NEM shaft 362 with close coupling mechanism
• Minimum radius: 358 mm
• Flywheel: yes
• Number of driven axles: 4
• Number of axles with traction tyres: 1
• Article number: 7510083
• Scale: H0
• Epoch: IV-V
• Railway Company: PKP

Electrical

• Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
• LED head light: yes
• Interior lighting: Yes, LED, Digital switchable, Driver's cab lighting, Engine room lighting
• Control: DC Digital
• Interface: Electrical interface for traction units PluX22
• Digital decoder: PluX22
• Sound: yes
• Buffer capacitor: yes

Measurements

• Length over buffer: 186 mm
