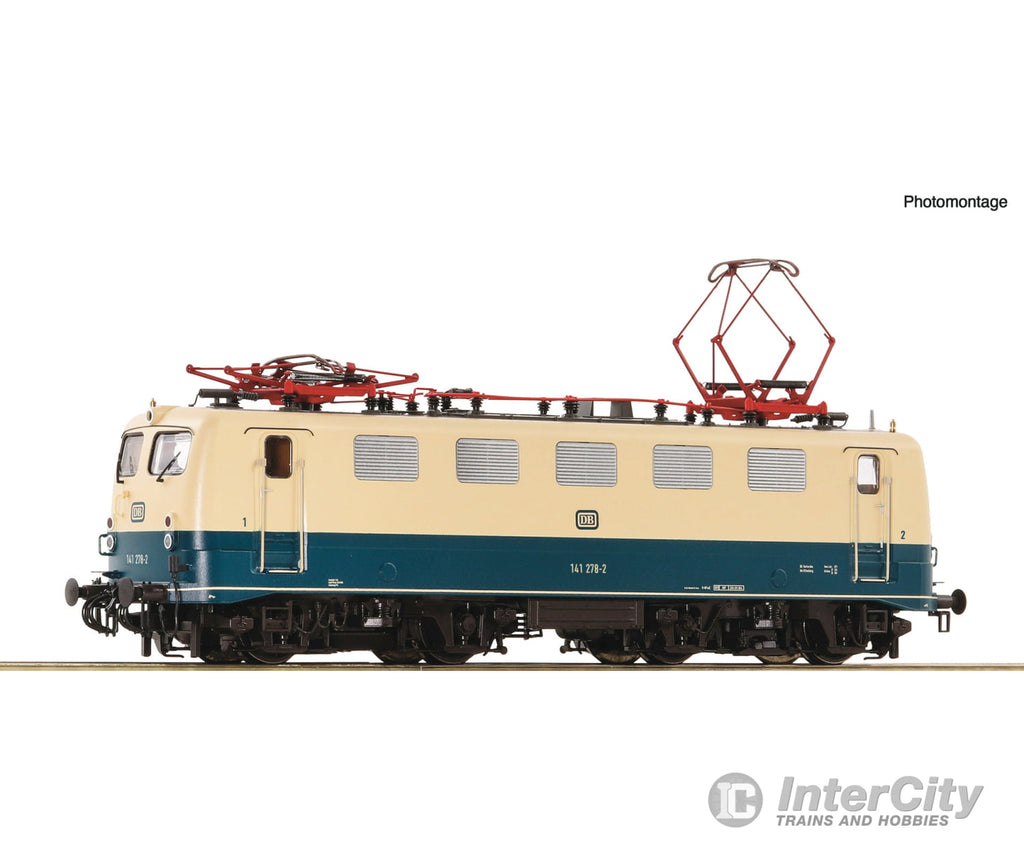

Roco 7510056 HO Electric locomotive 141 278-8, DB , Era 4 (DCC Sound)

Electric locomotive 141 278 of the German Federal Railway.

• For the first time with multi-nozzle fan grilles
• Etched catwalks and windscreen wipers
• Finely-detailed model with free-standing handle rails
• With individually switchable headlight or tail light and driver's cab lighting in digital mode

The class E 41/141 locomotives were first delivered in 1956 for light mixed service on main and branch lines. They were the only class in the standard locomotive program to feature a rear derailleur on the low-voltage side of the transformer. The rear derailleur made a characteristic noise that, in addition to the large jumps in traction force, resulted in the nickname "firecracker".

General data

• Coupling: NEM shaft 362 with close coupling mechanism
• Minimum radius: 358 mm
• Flywheel: yes
• Number of driven axles: 4
• Number of axles with traction tyres: 1
• Article number: 7510056
• Scale: H0
• Epoch: IV
• Railway Company: DB

Electrical

• Motor: 5-pole motor
• Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
• LED head light: yes
• Additional light function: yes
• Interior lighting: Yes, LED, Digital switchable, Driver's cab lighting
• Control: DC Digital
• Interface: Electrical interface for traction units PluX22
• Digital decoder: PluX22
• Decoder-Type: MS450P22
• Sound: yes
• Buffer capacitor: yes

Measurements

• Length over buffer: 180 mm
