Description

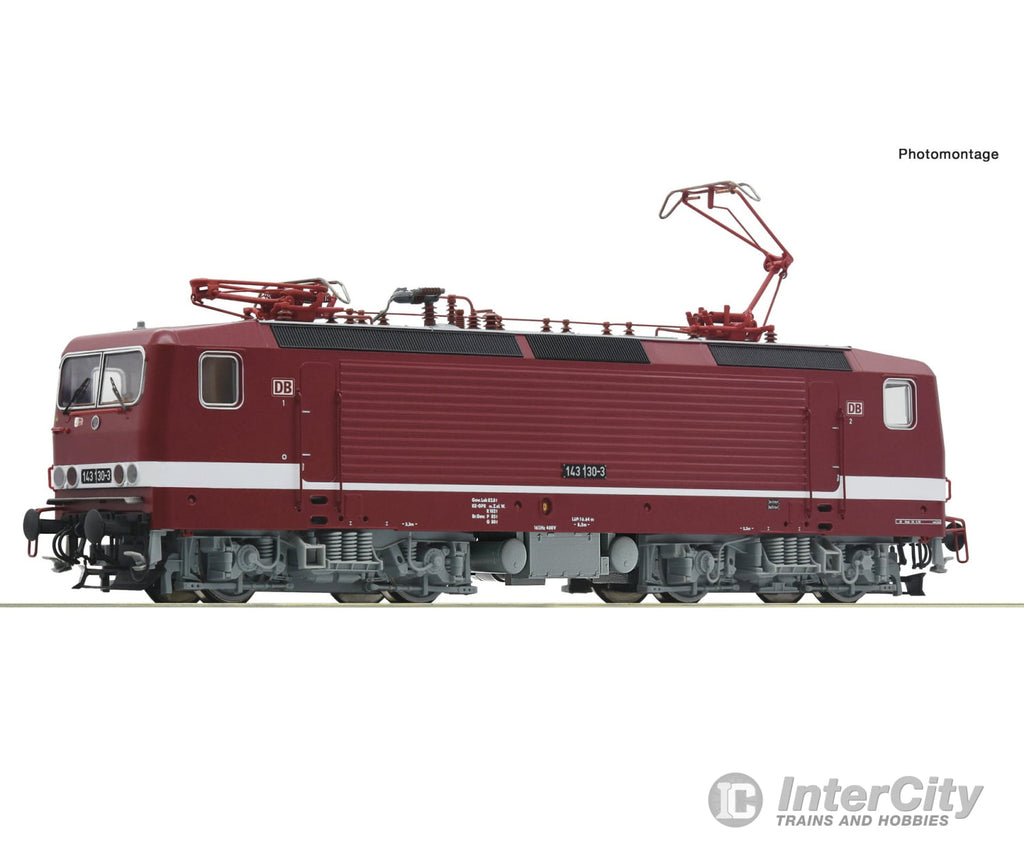

Electric locomotive 143 130 of the Deutsche Bahn.
In bordeaux red paintwork with DB AG logos
With separately attached plug-in parts, in part using etching technology
Suitable for the Halberstadt coaches, art. no. 74807, 74808, 74809, 74810
The progressive electrification of the DR railway network made it necessary to develop a four-axle electric locomotive in the early 1980s. Class 243 is a universal electric locomotive of the railway company of the German Democratic Republic (Deutsche Reichsbahn, DR) that was created from trial locomotive 212 001-2 and is used in all areas of train operation. The DR procured over 600 of them.
When the East German and West German state railways merged, class 243 locomotives were transferred to the DB AG fleet. There they were incorporated as class 143.
- Coupling: NEM shaft 362 with close coupling mechanism
- Minimum radius: 358 mm
- Flywheel: yes
- Number of driven axles: 4
- Number of axles with traction tyres: 1
- Article number: 7500066
- Scale: H0
- Epoch: V
- Railway Company: DB-AG
General data
- Motor: 5-pole motor
- Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
- LED head light: yes
- Control: DC Analog
- Interface: Electrical interface for traction units PluX22
Electrical
- Length over buffer: 192 mm
Measurements
