Description

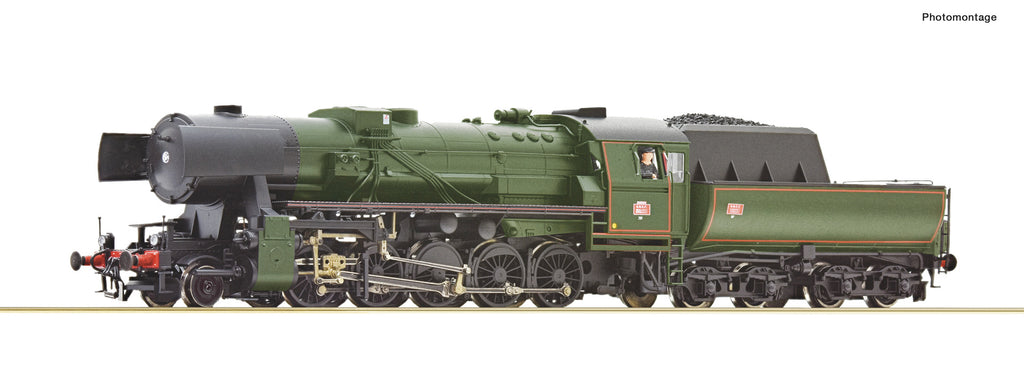

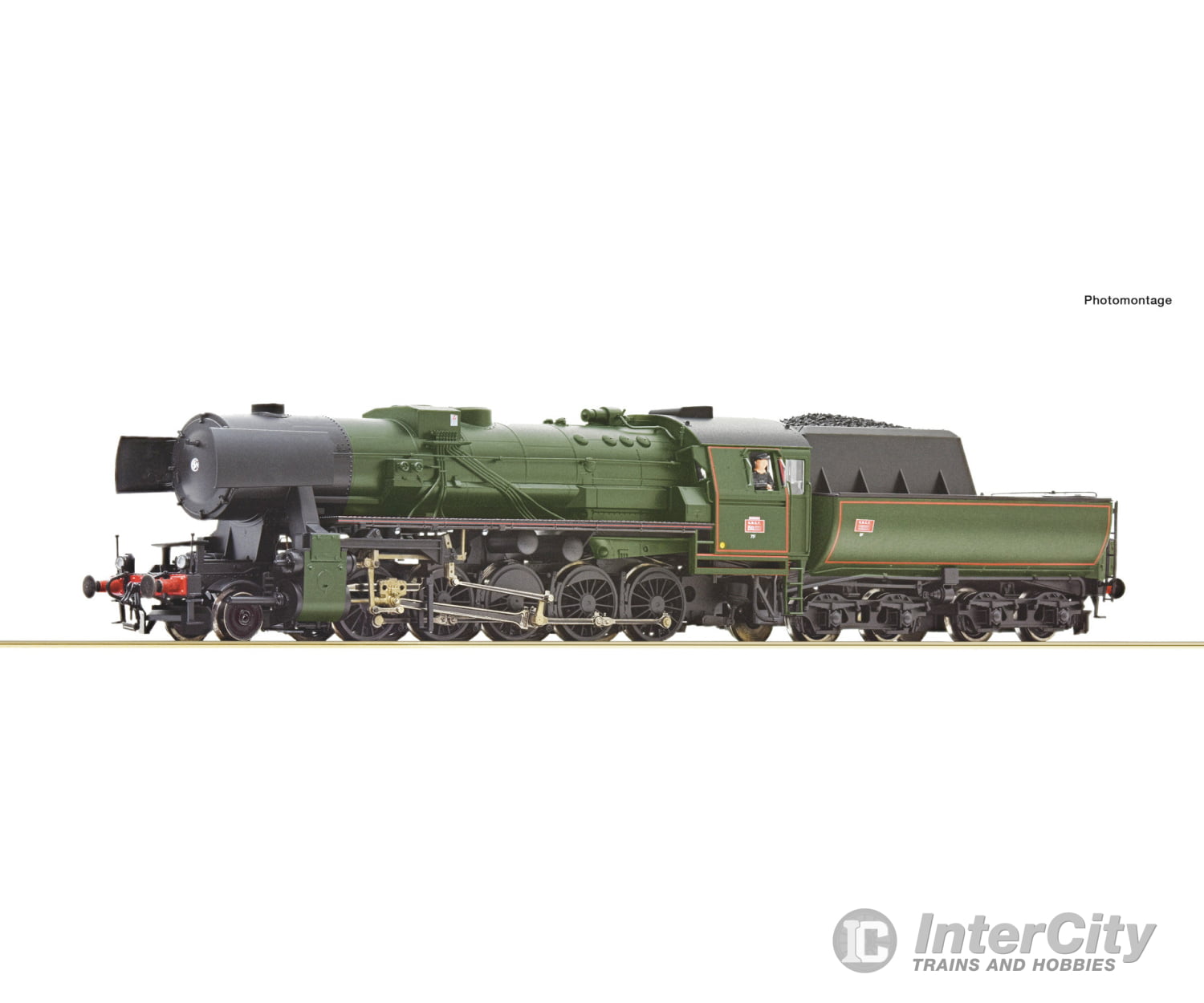

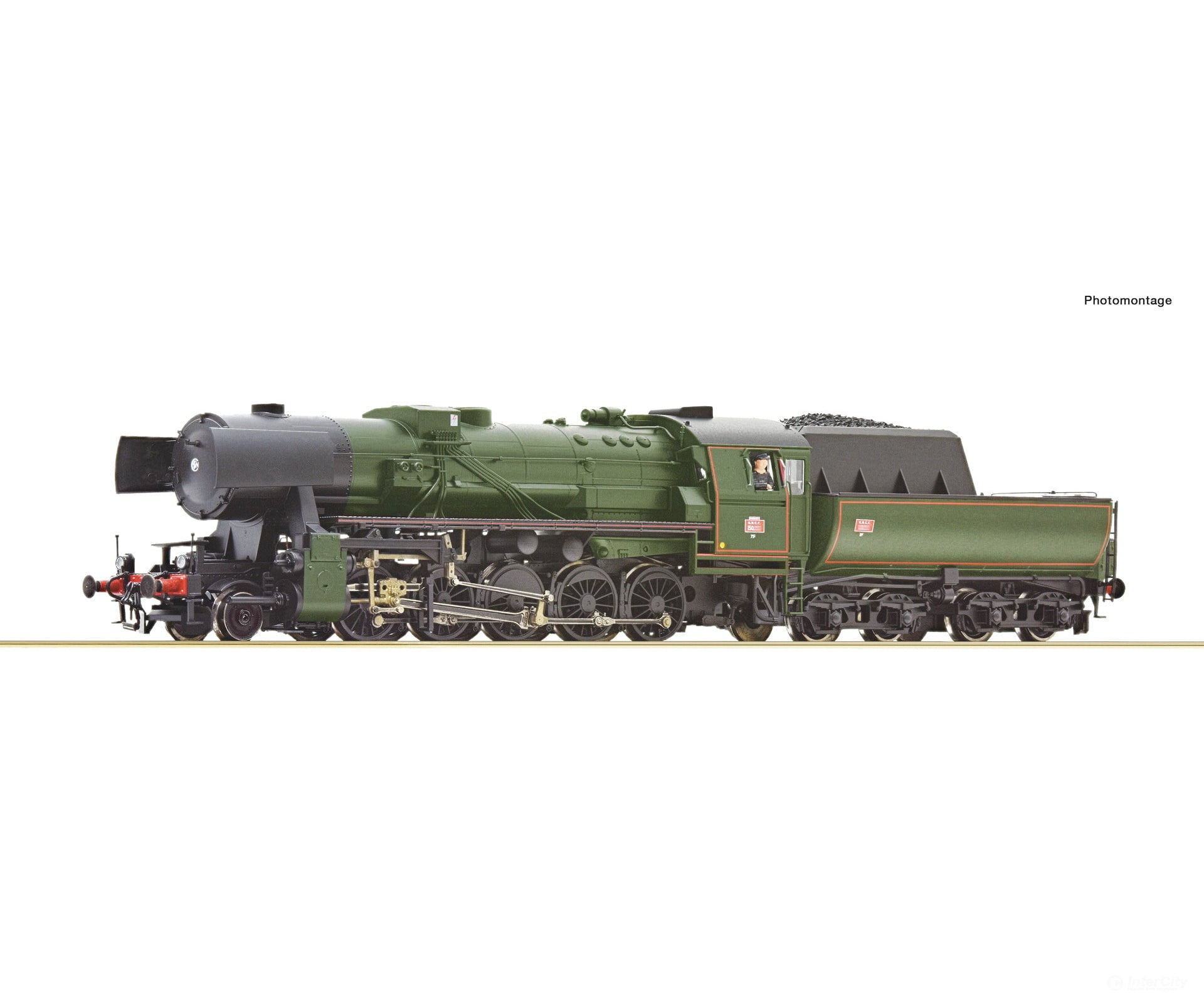

Steam locomotive 150.Y.16 of the French State Railways.
Drive on two axles of the tender and via a cardan shaft on all five drive axles of the locomotive.
First time in black/green livery
Variant with disc leading wheel
With fine metal-spoke wheels
Driving and coupling rods made of precision-cast metal
Z21 driver's cab available
In 1943/44, the Société Alsacienne de Constructions Mécaniques (SACM) locomotive factory in Graffenstaden near Strasbourg built over 100 Class 52 locomotives. In 1945/46, a further 17 locomotives were added for the SNCF. There, the Class 52 was designated Class 150 Y. A special feature of the locomotives was the shorter chimney so as not to exceed the French loading gauge. The Class 150 Y hauled both heavy goods trains and passenger trains in the SNCF's eastern region. They were in service there until the end of the 1950s.
- Coupling: Close coupler motion link between locomotive and tender, NEM shaft 362 with close coupling mechanism at the tender
- Minimum radius: 358 mm
- Flywheel: yes
- Z-21 Cab: True mm
- Number of driven axles: 7
- Number of axles with traction tyres: 2
- Article number: 7120038
- EAN: 9005033384265
- Scale: H0
- Epoch: III
- Railway Company: SNCF
General data
- Head light: Direction dependent dual headlights
- LED head light: yes
- Control: AC
- Interface: Electrical interface for traction units PluX16
- Digital decoder: PluX16
- Sound: yes
Electrical
- Length over buffer: 265 mm
Measurements
