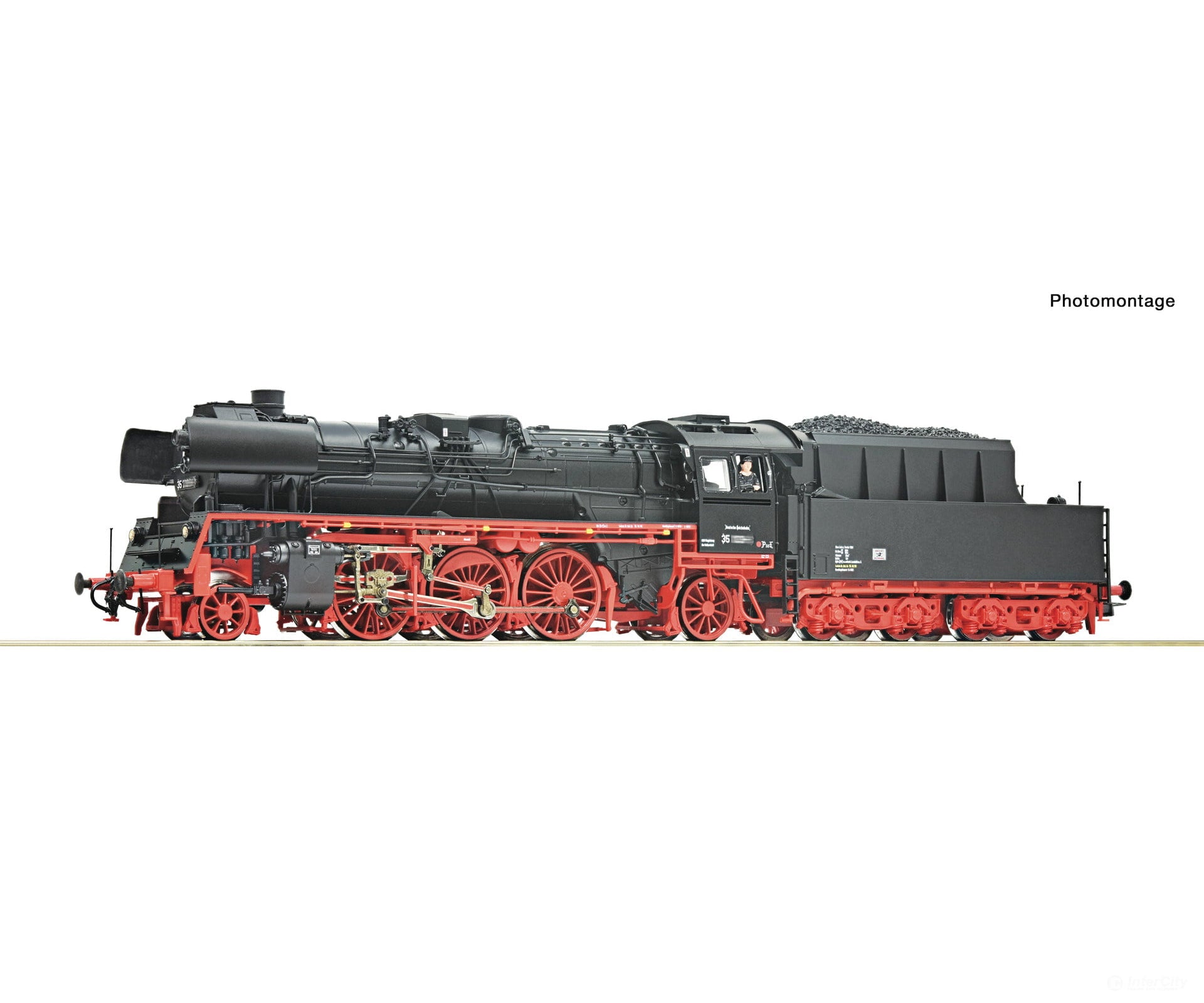

Roco 7120023 HO Steam locomotive class 35.10, DR , AC Digital Sound

Steam locomotive class 35.10 of the Deutsche Reichsbahn.

Drive on two axles of the tender and via cardan shaft on all three drive axles of the locomotive.

• Operation condition: 1970s
• Mainly used in front of express and fast trains on main lines
• Finely detailed model with many separately applied plug-in parts
• With fine metal wheelsets
• Stationed at Railway Mangement Dresden, Nossen depot

With the introduction of the EDP numbering at the Deutsche Reichsbahn, the former 23.10 series locomotives also received the new designation 35.10. These locomotives were developed from the pre-series models 23 001 and 23 002, and mainly for their smooth operation and efficient coal consumption, they were highly appreciated by the operating staff.

General data

• Coupling: NEM shaft 362 with close coupling mechanism at the tender
• Minimum radius: 358 mm
• Flywheel: yes
• Number of driven axles: 5
• Number of axles with traction tyres: 2
• Article number: 7120023
• Scale: H0
• Epoch: IV
• Railway Company: DR

Electrical

• Motor: 5-pole motor
• Head light: Both sides of the vehicle are equipped with direction dependent triple headlights.
• LED head light: yes
• Control: AC
• Interface: Electrical interface for traction units PluX16
• Digital decoder: PluX16
• Sound: yes

Measurements

• Length over buffer: 261 mm
