Marklin 49570 DB Ardelt 57 Metric Ton Steam Crane

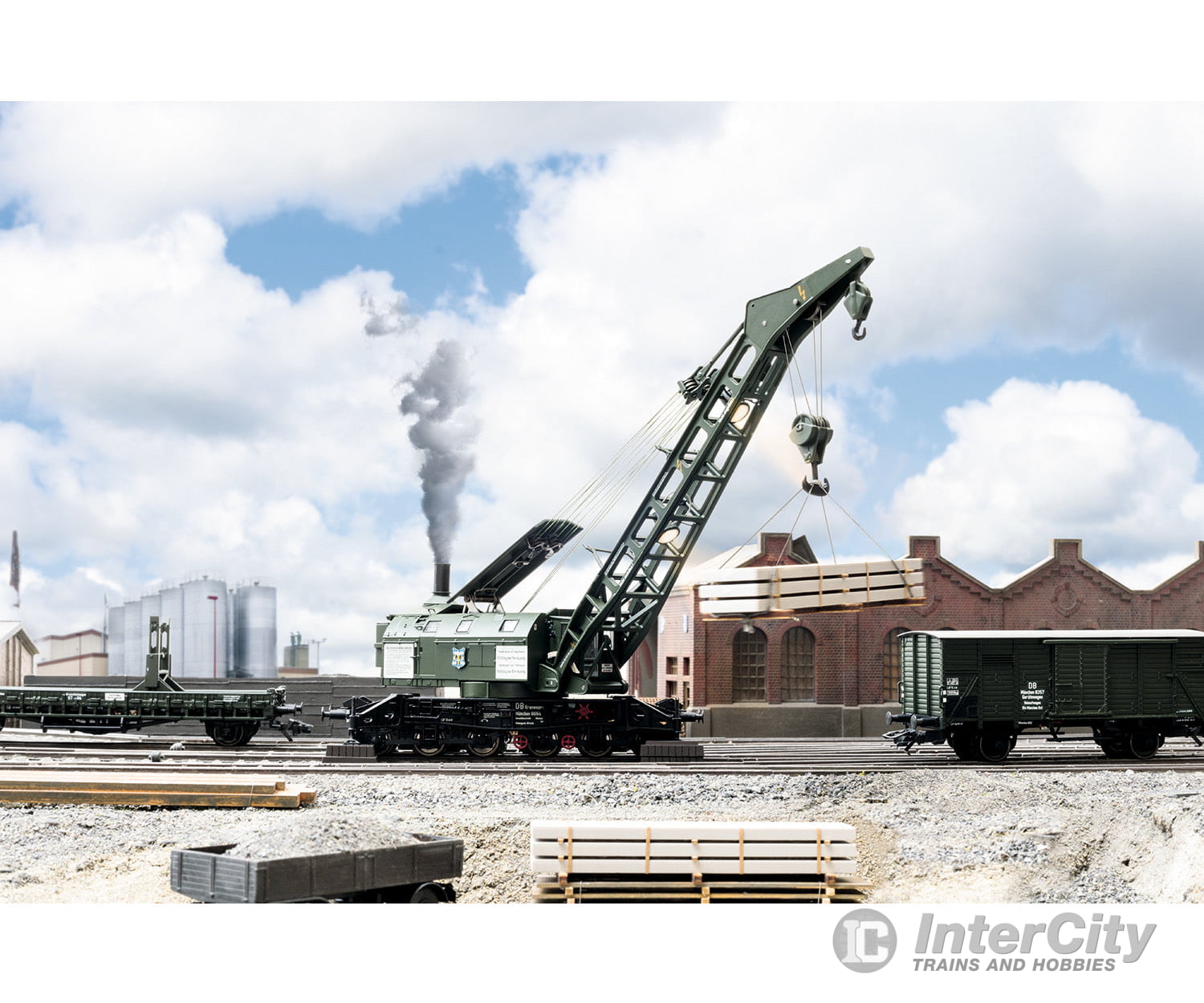

Prototype: German Federal Railroad (DB) 6-axle railroad rotary crane car with Ardelt system steam propulsion with a lifting capacity of 57 metric tons, with a crane tender car (converted from a type Rms Stuttgart car) and an equipment car. "Bottle Green" paint scheme for the steam crane. Road number "München 6664". The cars look as they did around 1958.

Highlights

• Steam crane car completely new tooling constructed chiefly of metal.
• DCC/mfx digital decoder with extensive sound functions included.

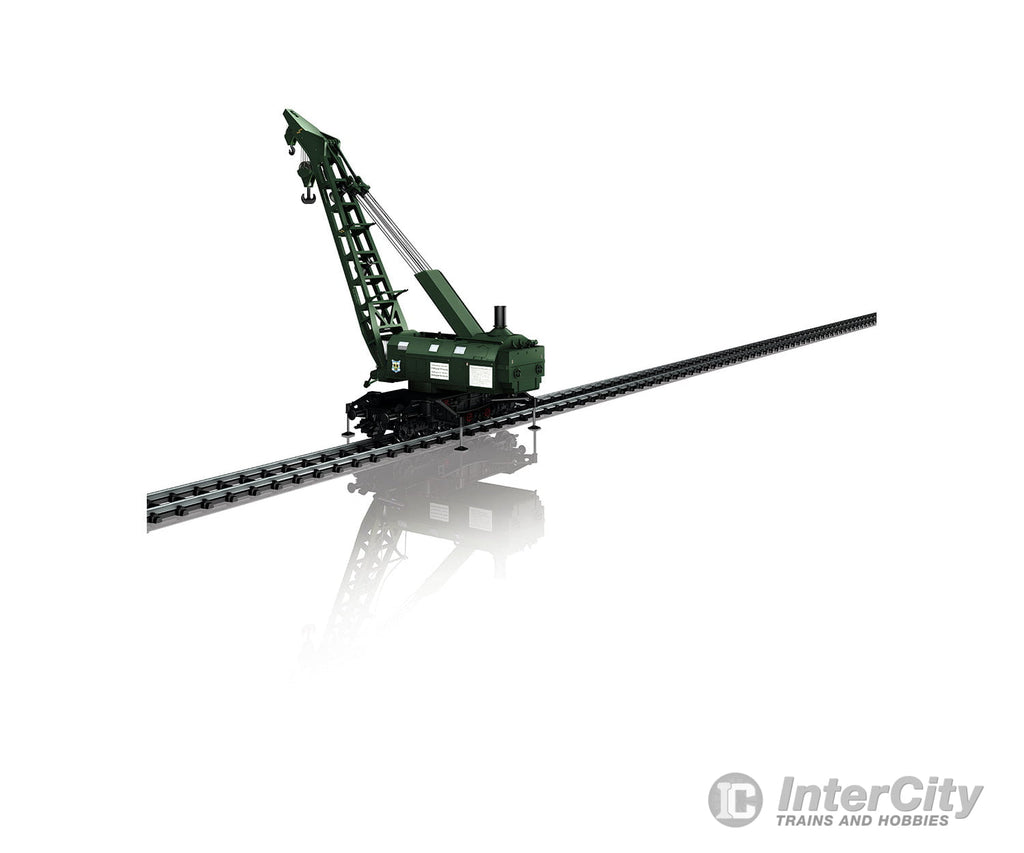

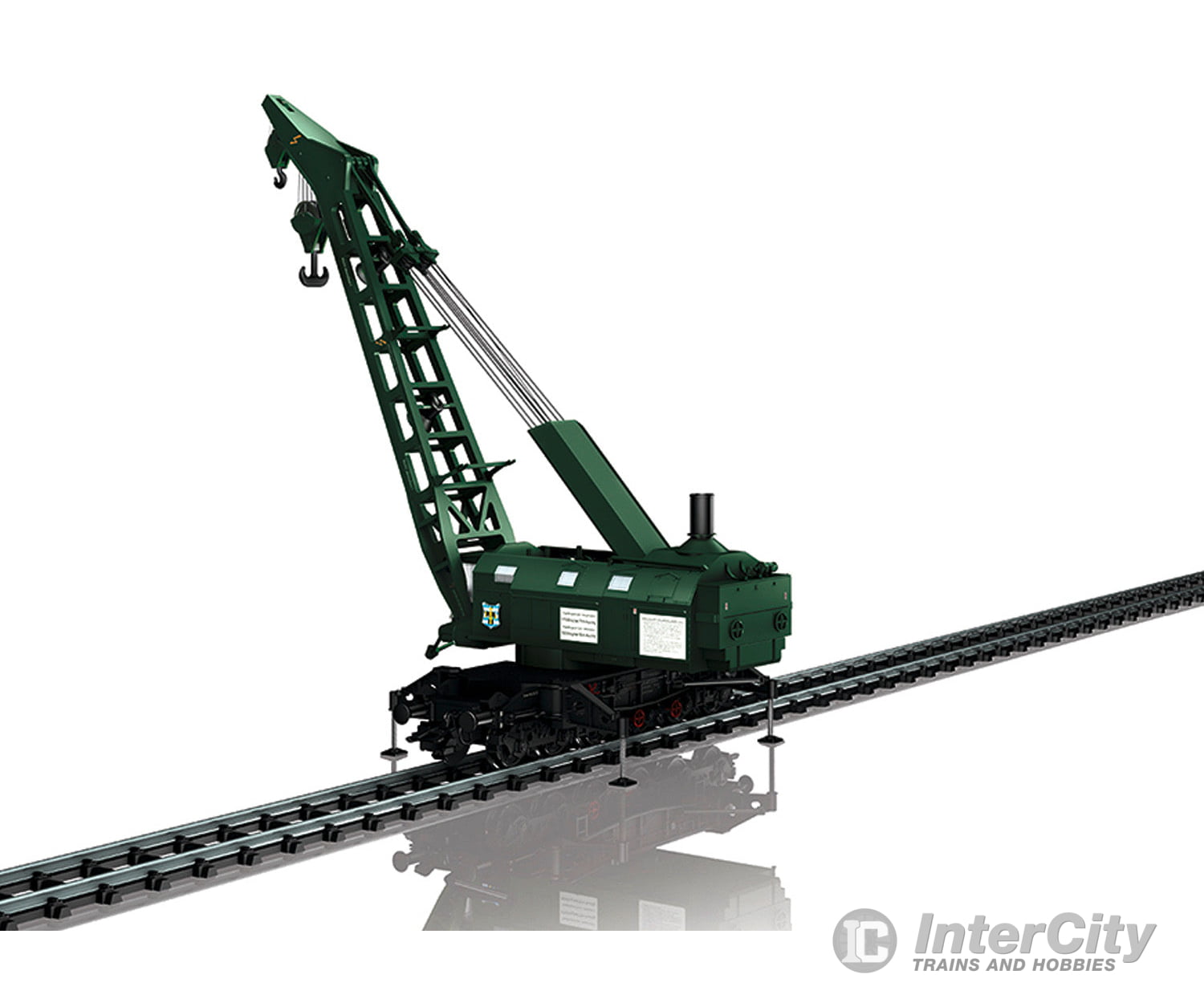

• Crane superstructure with its boom can be rotated 360°.
• Boom can be raised and lowered by means of a pulley.
• Main hook can be raised and lowered by means of a pulley.
• Cab lighting.
• Two working floodlights.
• Built-in smoke unit.
• New tooling for the crane tender car.

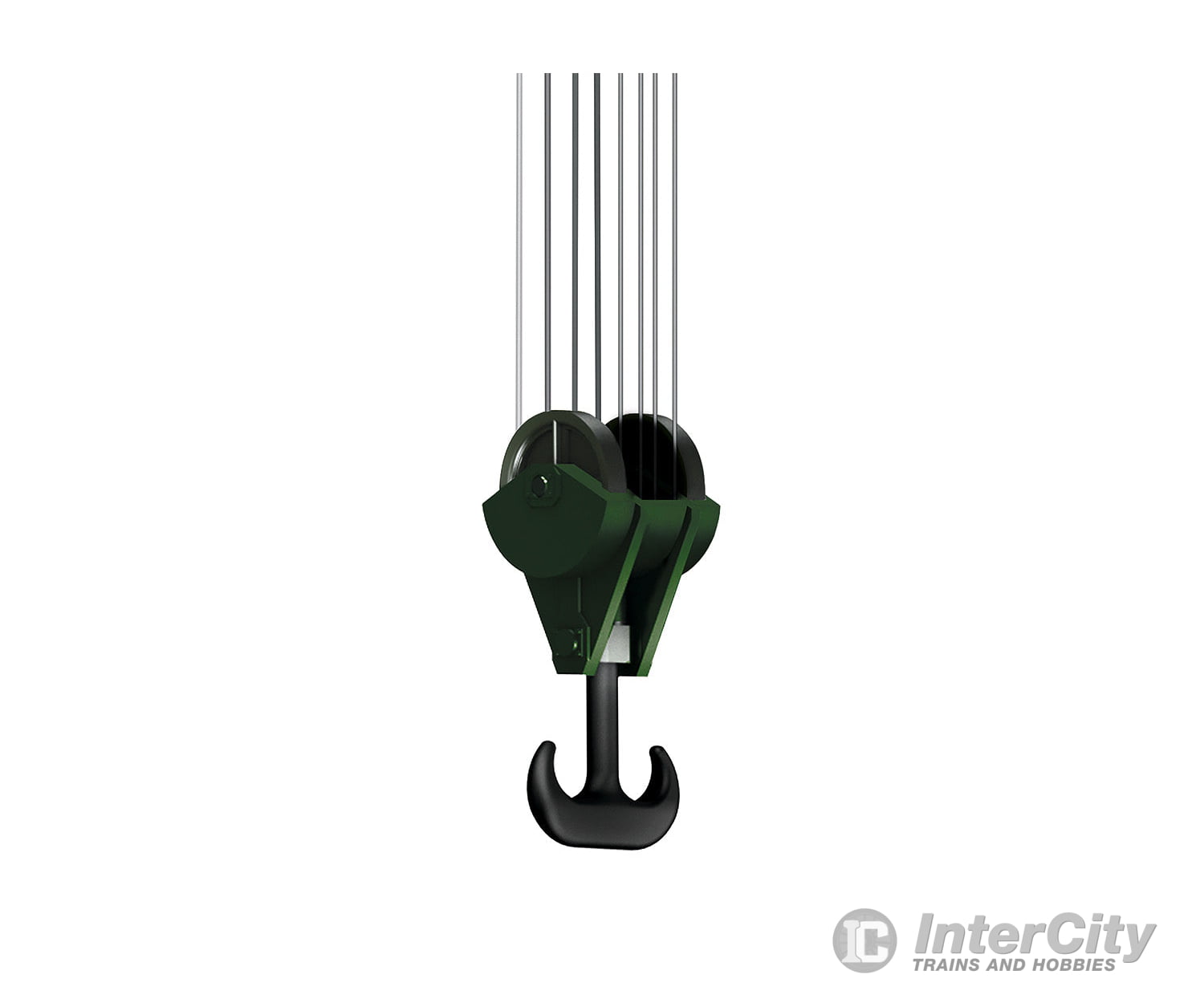

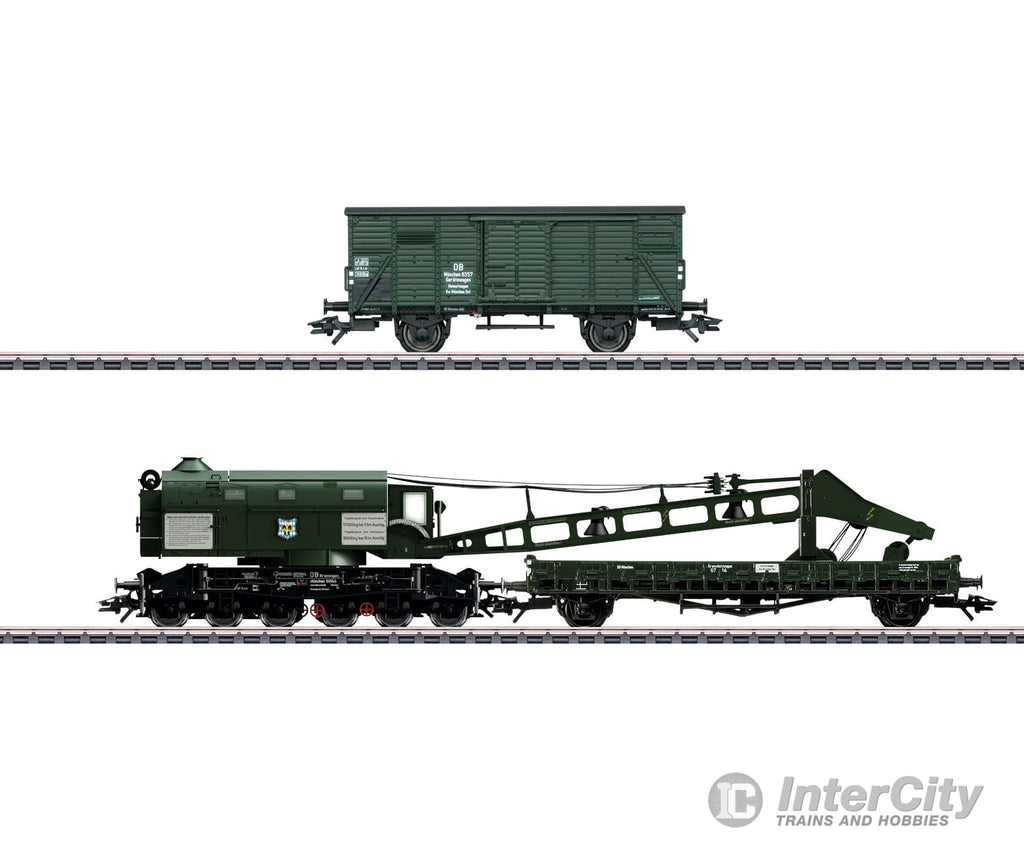

Model: The crane car has an mfx+ digital decoder and sound functions. The crane superstructure with its boom can be rotated 360° on the ring gear. The boom can be raised and lowered by means of a pulley. The main hook made of metal can be raised and lowered by means of a pulley. The crane cab lighting can be controlled digitally. Two floodlights on the boom can be controlled digitally. LEDs are used for the lighting. The crane car has a built-in smoke unit that can be controlled digitally. 4 support arms can be swung out manually and they can be positioned with spindles on the bases included with the crane car. The smoke stack with a smoke hood can be removed or installed. A counterweight made of metal can be partially removed and placed on the buffer attachment. The crane car has a 6-axle car frame and a crane housing constructed of metal. There is a stake car (converted from a type Rms Stuttgart car) with a guide block as a crane tender car. A former Association Design type G car with end area reinforcement and without a hand brake functions as an equipment car. The minimum radius for operation is 437.5 mm / 17-1/4"! Total length over the buffers approximately 36,6 cm / 14-1/2".
