Description

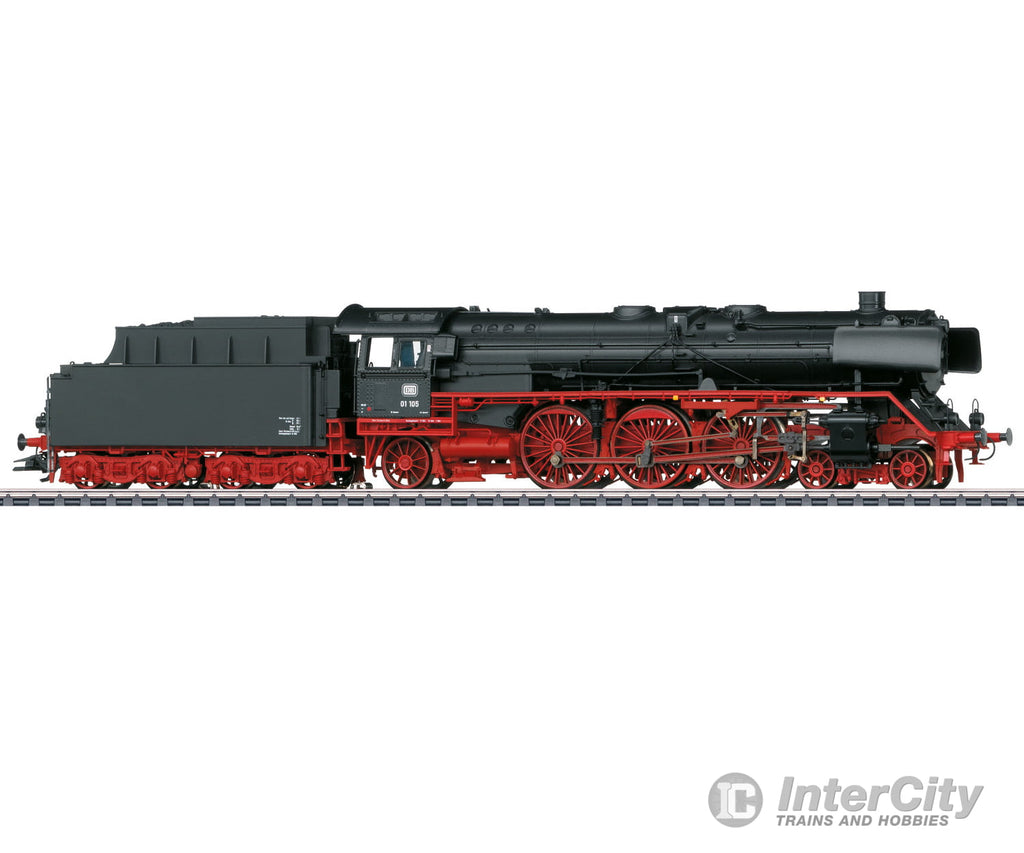

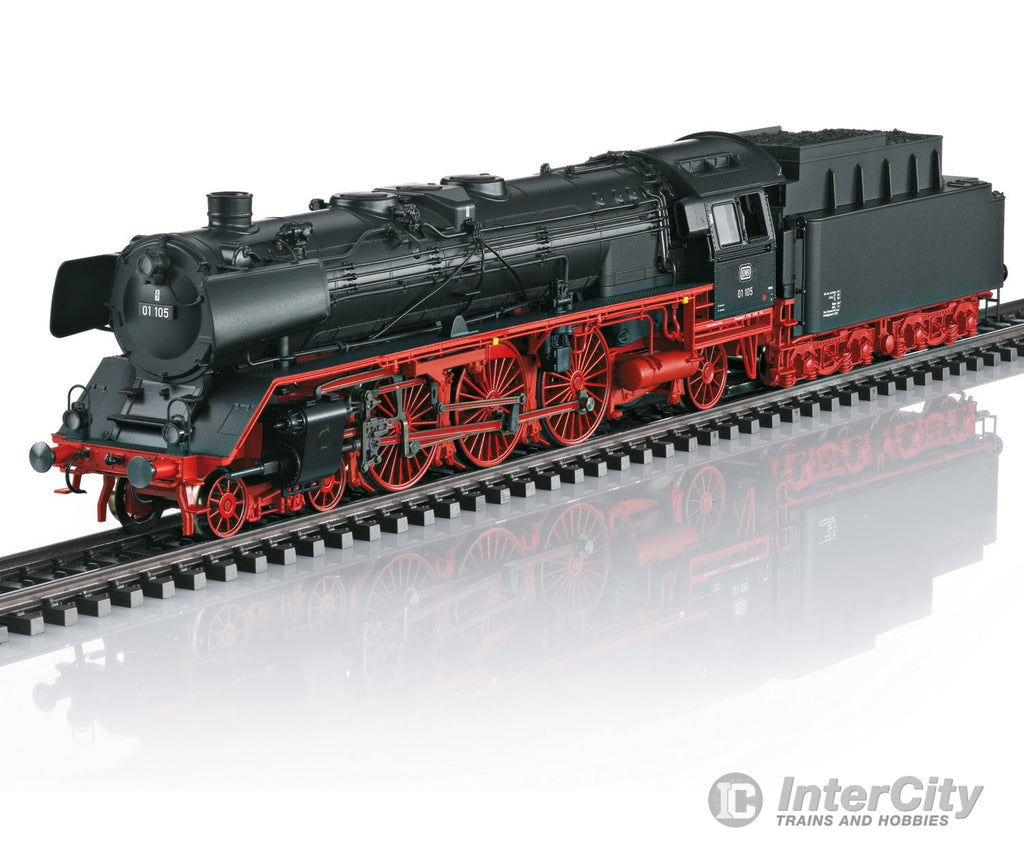

Prototype: German Federal Railroad (DB) class 01 express steam locomotive with a type 2´2´T34 coal tender and Witte smoke deflectors. Road number 01 105. The locomotive looks as it did around 1965.
Highlights
- Firebox flickering can be controlled digitally.
- mfx+ World of Operation digital decoder and extensive operation and sound functions included.
- Another Märklin classic.
Model: The locomotive has an mfx+ digital decoder and extensive sound functions. It also has controlled high-efficiency propulsion with a flywheel, mounted in the boiler. 3 axles powered. Traction tires. The locomotive and tender are constructed mostly of metal. A 7226 smoke unit can be installed in the locomotive. The triple headlights change over with the direction of travel. They and the smoke unit that can be installed will work in conventional operation and can be controlled digitally. The locomotive has firebox flickering that can also be controlled digitally. Maintenance-free warm white LEDs are used for the lighting. There is a permanent close coupling with a guide mechanism between the locomotive and tender. The rear of the tender has a guide mechanism and a close coupler with an NEM pocket. Protective piston rod sleeves and brake hoses are included.
Length over the buffers 27.5 cm / 10-13/16".
| ControlUnit | MobileStation | MobileStation 2 | CentralStation 1/2 | CentralStation 3/2* Mobile Station 2** | |
|---|---|---|---|---|---|
| Headlight(s) | * | * | * | * | * |
| Smoke generator | * | * | * | * | * |
| Steam locomotive op. sounds | * | * | * | * | * |
| Locomotive whistle | * | * | * | * | * |
| Direct control | * | * | * | * | * |
| Sound of squealing brakes off | * | * | * | * | |
| Coal being shoveled and firebox flickering | * | * | * | * | |
| Flickering Light in Fire Box | * | * | * | * | |
| Air Pump | * | * | * | * | |
| Letting off Steam | * | * | * | ||
| Sound of coal being shoveled | * | * | * | ||
| Tipping grate | * | * | * | ||
| Water Pump | * | * | * | ||
| Injectors | * | * | * | ||
| Whistle for switching maneuver | * | * | * | ||
| Replenishing fuel | * | ||||
| Replenishing fuel | * | ||||
| Replenishing fuel | * | ||||
| Sanding | * | ||||
| "Switcher Double ""A"" Light" | * | ||||
| Switching maneuver | * | ||||
| Generator Sounds | * | ||||
| Light Function | * | ||||
| Rail Joints | * | ||||
| Safety Valve | * | ||||
| Sound of Couplers Engaging | * | ||||
| Coupler sounds | * | ||||
| Conductor's Whistle | * |
