Description

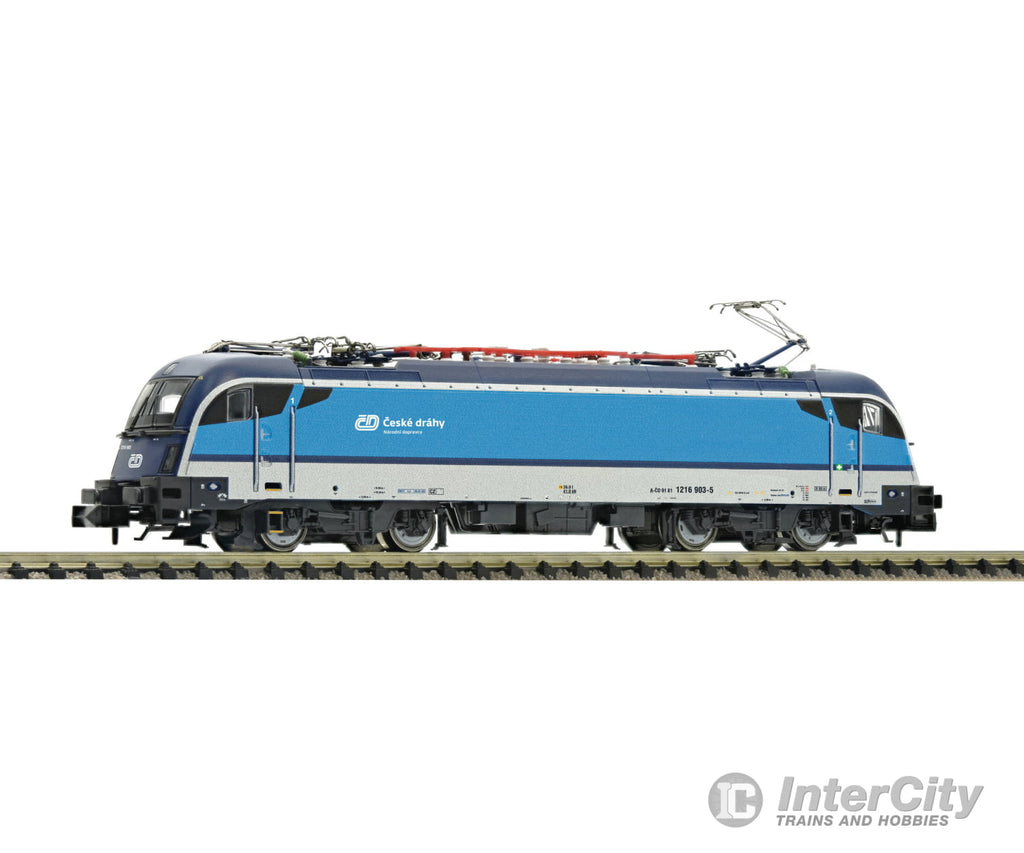

Electric locomotive 1216 903 of the Czech State Railways.
Paintwork in the "Najbrt design"
Finely detailed model with many separately attached plug-in parts
Elaborate roof design with four pantographs
Use in international passenger and freight transport
With switchable high beam and individually switchable headlight or tail light in digital mode
The electric locomotives from Siemens, type ES64U4 were used as the class 1216 (Taurus III) by the ÖBB and other European railway transport companies and are multi-system three-phase current general-purpose locomotives based on technology from the Siemens EuroSprinter family. The locomotives are able to achieve a top speed of 230 km/h with a power output of 6,400 kW.
In September 2019, the Czech State Railways purchased locomotives 1216 902 and 903 from Rail Transport Service GmbH (RTS). After a thorough overhaul and repainting in the current Najbrt design, they are now mostly used in EuroCity traffic.
- Coupling: NEM shaft 355 with close coupling mechanism
- Minimum radius: 192 mm
- Flywheel: yes
- Traction tyres: 2
- Number of driven axles: 4
- Scale: N
- Epoch: VI
- Railway Company: CD
General data
- Motor: 3 pole motor
- Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
- LED head light: yes
- Additional light function: yes
- Sound: yes
- Control: 2L - Digital
- Interface: Electrical interface for traction units Next18
- Digital decoder: Next18
Electrical
- Length over buffer: 122 mm
Measurements
