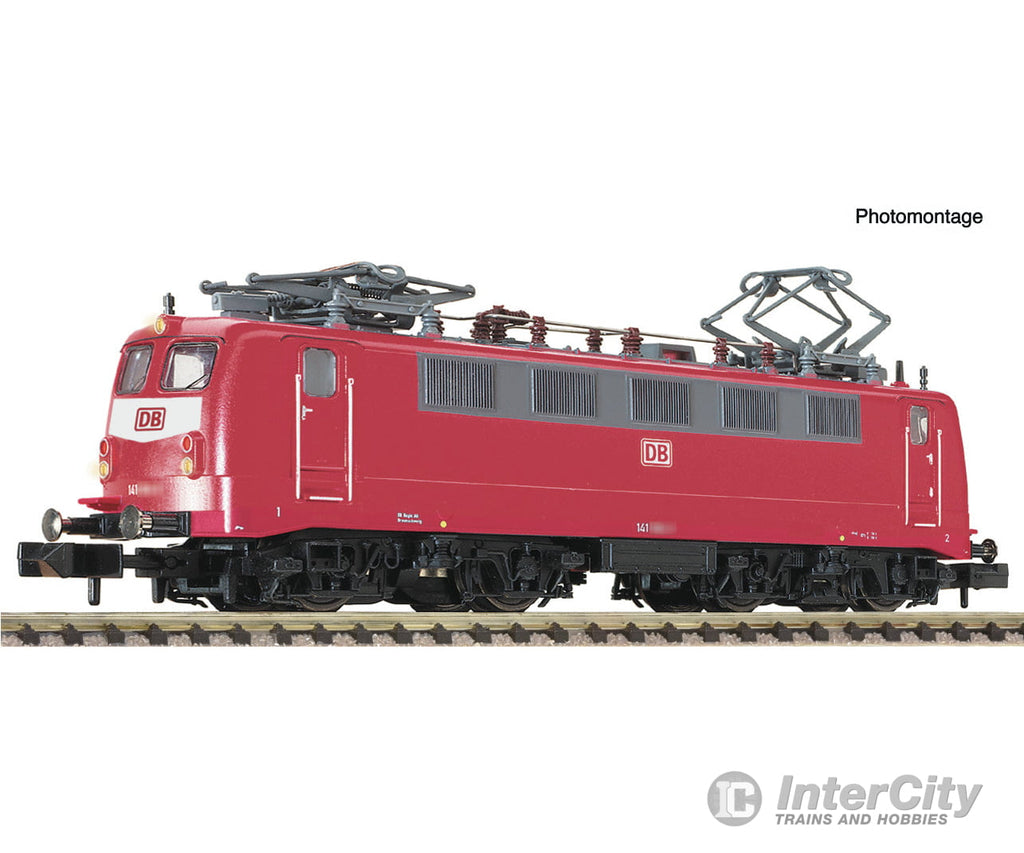

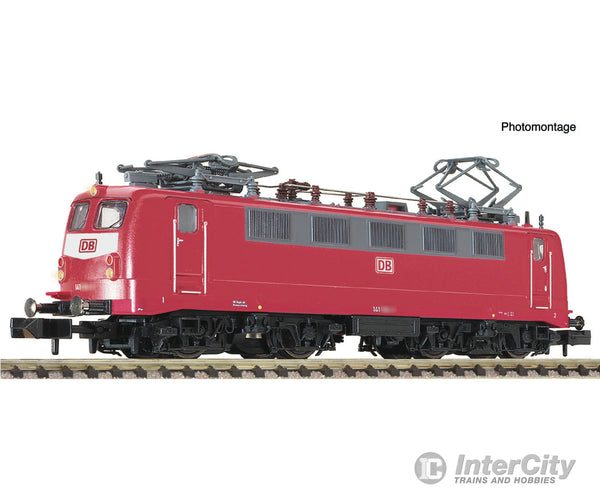

Fleischmann 7570019 N Electric locomotive class 141, DB AG , Era 5 (DCC Sound)

Electric locomotive class 141 of the Deutsche Bahn.

• Orient red livery with bib
• Version with double lamps
• Individually switchable headlight or tail light in digital mode

The machines of class E 41 (from 1968: 141) were first delivered to the German Federal Railway in 1956 for light and mixed service on main lines with a maximum speed of 120 km/h and a continuous power of 2,310 kW. They were the only class in the standard locomotive program to feature a rear derailleur on the low-voltage side of the transformer. The rear derailleur made a characteristic noise that, in addition to the large jumps in traction force, resulted in the nickname "firecracker". From 1987, the locomotives were painted oriental red.

General data

• Coupling: NEM shaft 355 without close coupling mechanism
• Minimum radius: 192 mm
• Flywheel: yes
• Traction tyres: 2
• Number of driven axles: 4
• Scale: N
• Epoch: V
• Railway Company: DB-AG

Electrical

• Motor: 3 pole motor
• Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
• LED head light: yes
• Additional light function: yes
• Sound: yes
• Control: 2L - Digital
• Interface: Electrical interface for traction units according to NEM 651 standards with plug-in fixture
• Digital decoder: NEM 651

Measurements

• Length over buffer: 98 mm
