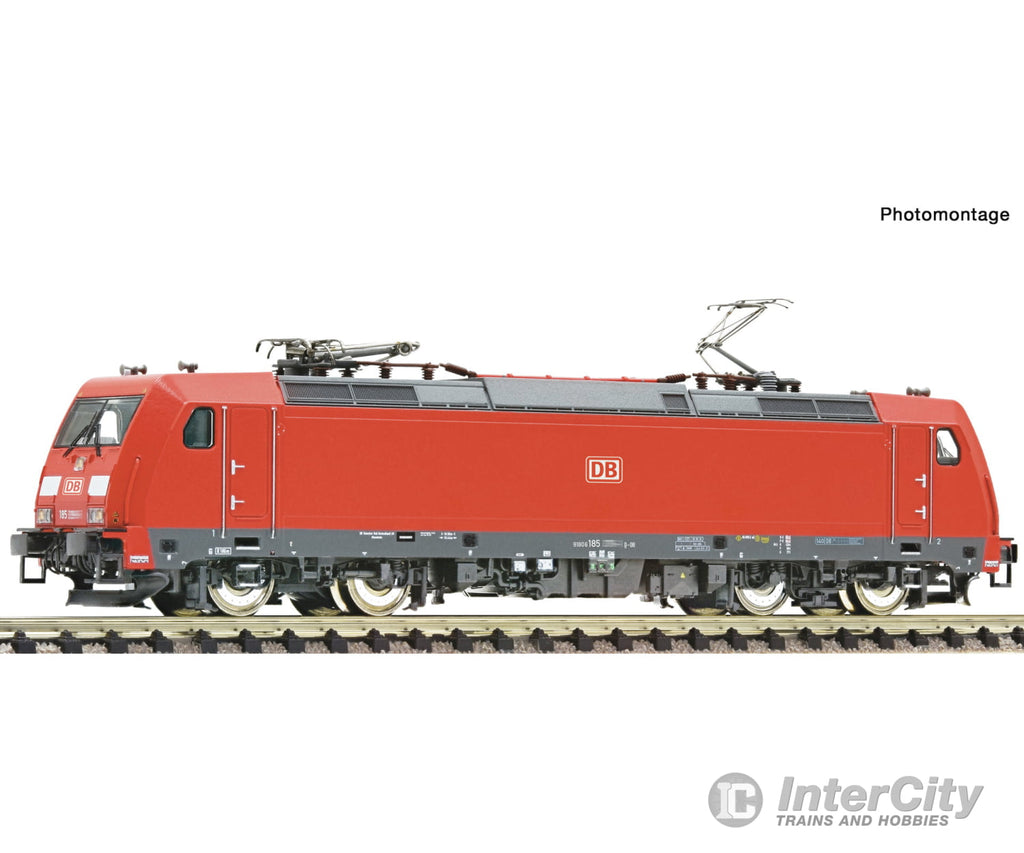

Fleischmann 7570018 N Electric locomotive class 185.2, DB AG , Era 6 (DCC Sound)

Electric locomotive class 185.2 of Deutsche Bahn.

• Finely-detailed pantographs
• With individually switchable headlight or tail light in digital mode

The class 185.2 is an electric dual-system locomotive featuring a crash-optimised locomotive body by Bombardier Transportation. It can be operated on both the 15 kV/16 2/3 Hz and 25 kV/ 50 Hz AC voltage systems commonly used in Europe. The first locomotive of this type was handed over to Deutsche Bahn in January 2005. By 2009, 202 locomotives of the 185.2 class had been delivered to DB AG.

General data

• Coupling: NEM shaft 355 with close coupling mechanism
• Minimum radius: 192 mm
• Flywheel: yes
• Traction tyres: 2
• Number of driven axles: 4
• Scale: N
• Epoch: VI
• Railway Company: DB-AG

Electrical

• Motor: 5-pole motor
• Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
• LED head light: yes
• Additional light function: yes
• Sound: yes
• Control: 2L - Digital
• Interface: Electrical interface for traction units Next18
• Digital decoder: Next18

Measurements

• Length over buffer: 118 mm
