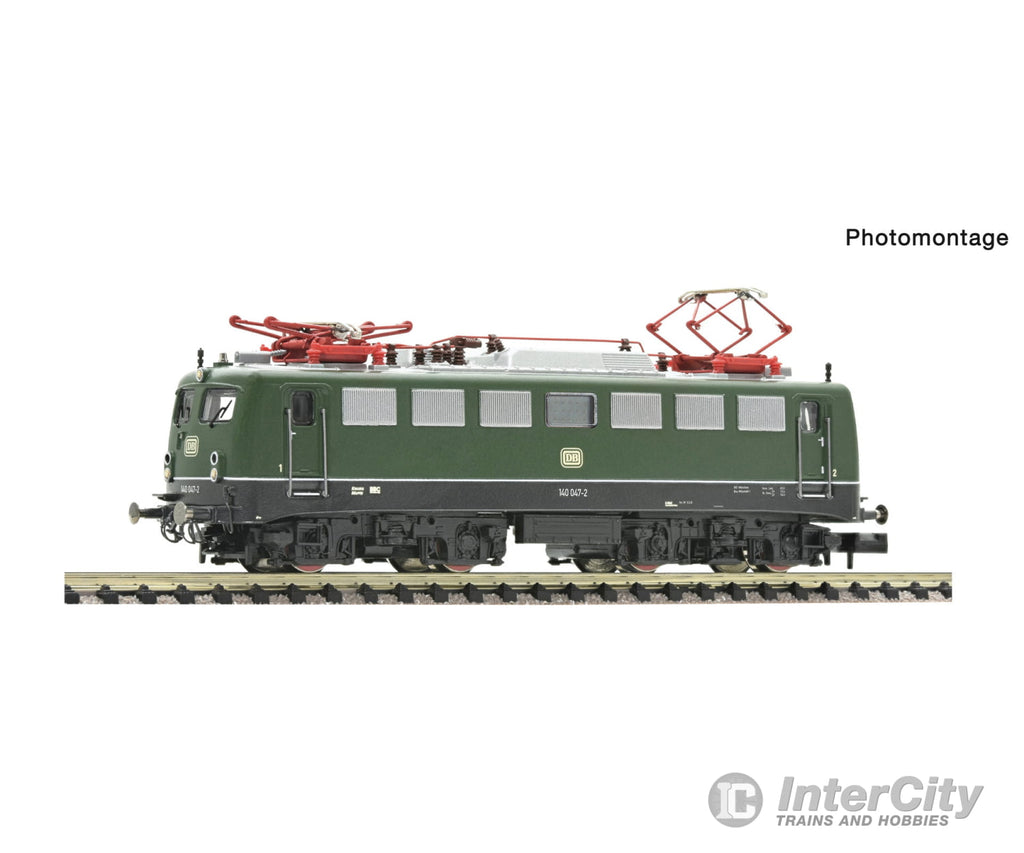

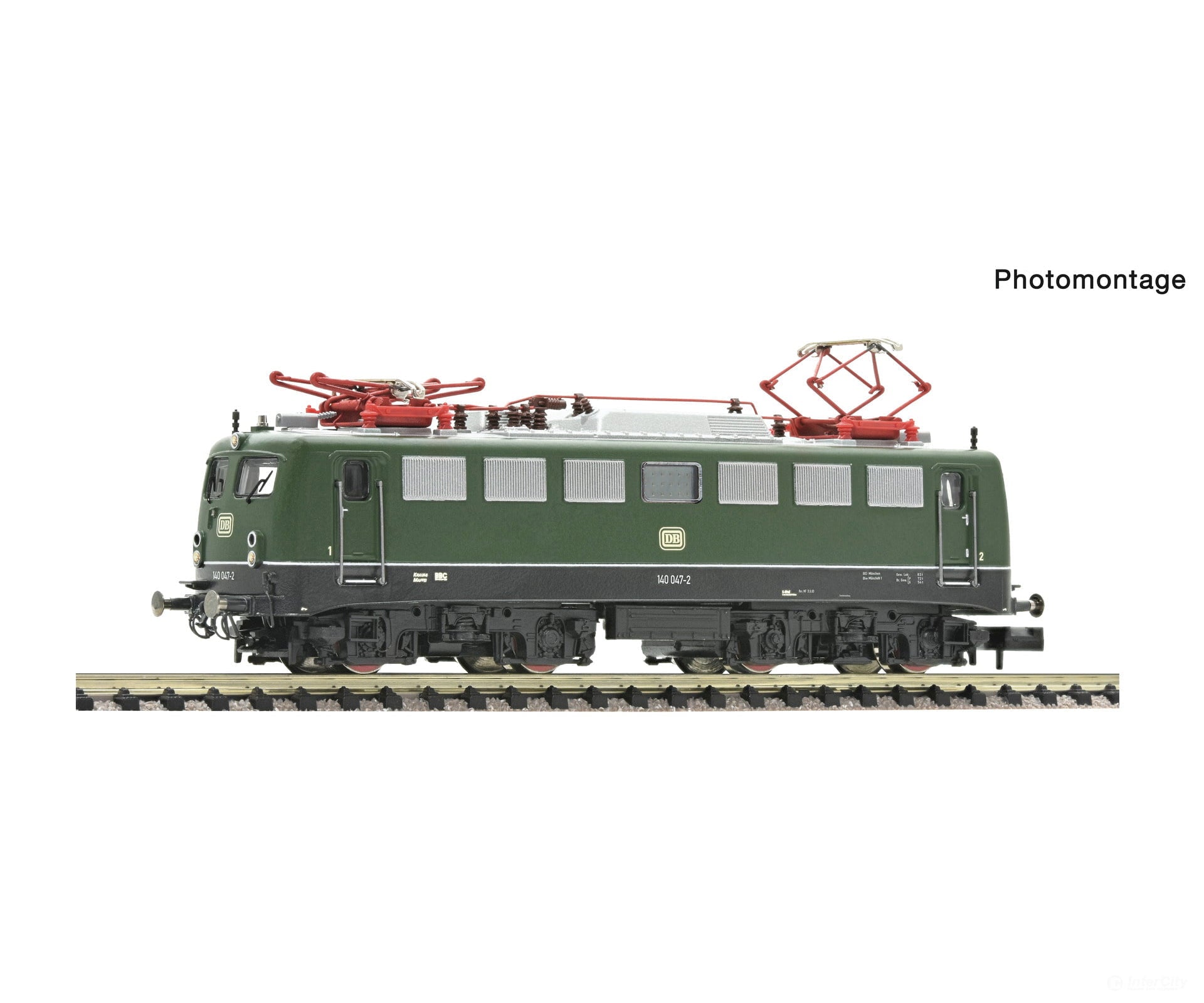

Fleischmann 7560051 N Electric locomotive 140 047-2, DB , DC Analog

Electric locomotive 140 047 of the German Federal Railway.

• Version with rubber rain gutters, double lamps and a handle bar at the front
• Metal die-cast undercarriage
• Switchable headlight/tail light with DIP switch

BZA Munich, Kraus-Maffei and SSW developed class E 40, which largely corresponds to the E 10.1 in terms of its technical design, for hauling heavy freight trains on main lines in the lowlands. Only the gear ratio was changed and an electric brake was not fitted as standard. Over 800 of the 110 km/h machines were put into service from 1957. Their power output was 3,260 kW. In 1968, it was redesignated class 140. For a long time, it carried the main load of freight trains on electrified lines, but was also used to pull passenger trains. It was decommissioned at the end of 2016 after almost 60 years of service with DB.

General data

• Coupling: NEM shaft 355 with close coupling mechanism
• Minimum radius: 192 mm
• Flywheel: yes
• Traction tyres: 2
• Number of driven axles: 4
• Scale: N
• Epoch: IV
• Railway Company: DB

Electrical

• Motor: 3 pole motor
• Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
• LED head light: yes
• Additional light function: yes
• Control: DC analogique
• Interface: Electrical interface for traction units according to NEM 651 standards with plug-in fixture

Measurements

• Length over buffer: 104 mm
