Description

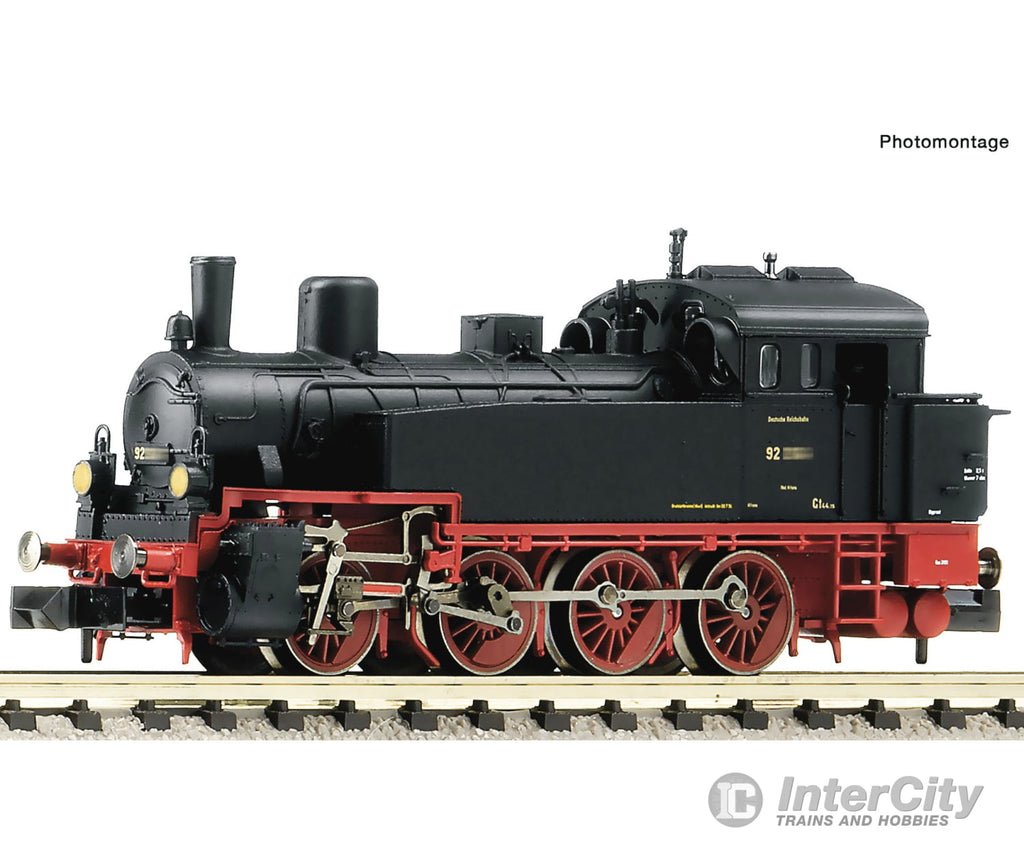

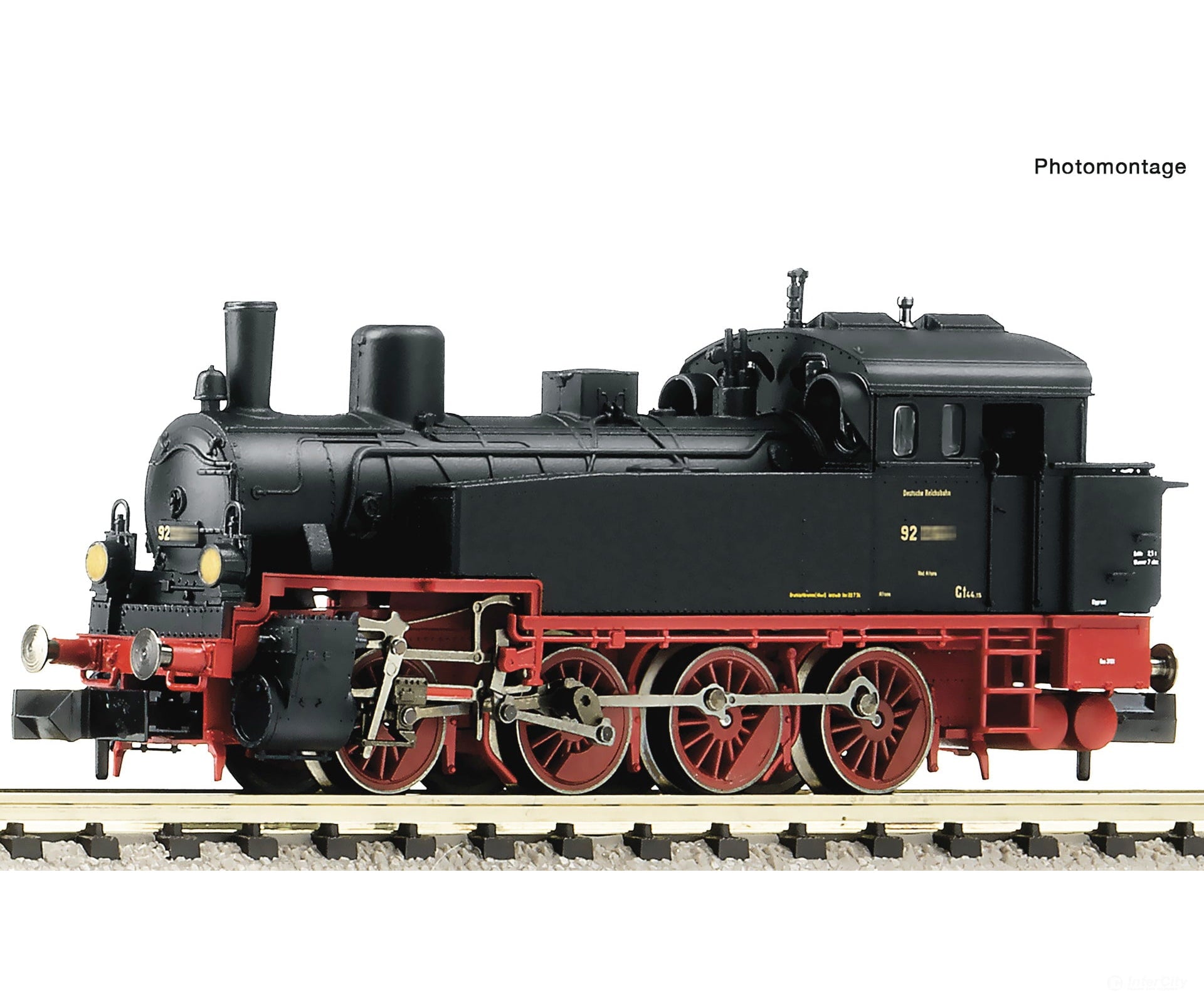

Steam locomotive class 92.5-10 of the German State Railway Company (DRG).
Update!
For the first time with Next18 interface
Authentic, unobstructed view between boiler and chassis
Maintenance-free bell armature motor
In the years between 1910 and 1916, a total of 512 T 13s were built for the Prussian State Railways by various manufacturers. Due to the numerous losses after World War I, the DRG ordered a further 72 locomotives, and the Saarbahnen ordered 12. The Imperial Railways in Alsace-Lorraine also had 60 T 13s in their fleet. The Grand Ducal Oldenburg State Railways owned ten locomotives of this type. The T 13 was added to the numbering system of the Deutsche Reichsbahn in 1925 as Class 92.5-10 with the running numbers 92 501-913 and 92 1001-1072.
- Coupling: NEM shaft 355 with close coupling mechanism
- Minimum radius: 192 mm
- Flywheel: yes
- Number of driven axles: 4
- Number of axles with traction tyres: 1
- Scale: N
- Epoch: II
- Railway Company: DRG
General data
- Motor: Coreless
- Head light: Direction dependent dual headlights
- LED head light: yes
- Control: DC analogique
- Interface: Electrical interface for traction units Next18
Electrical
- Length over buffer: 69 mm
Measurements
