Description

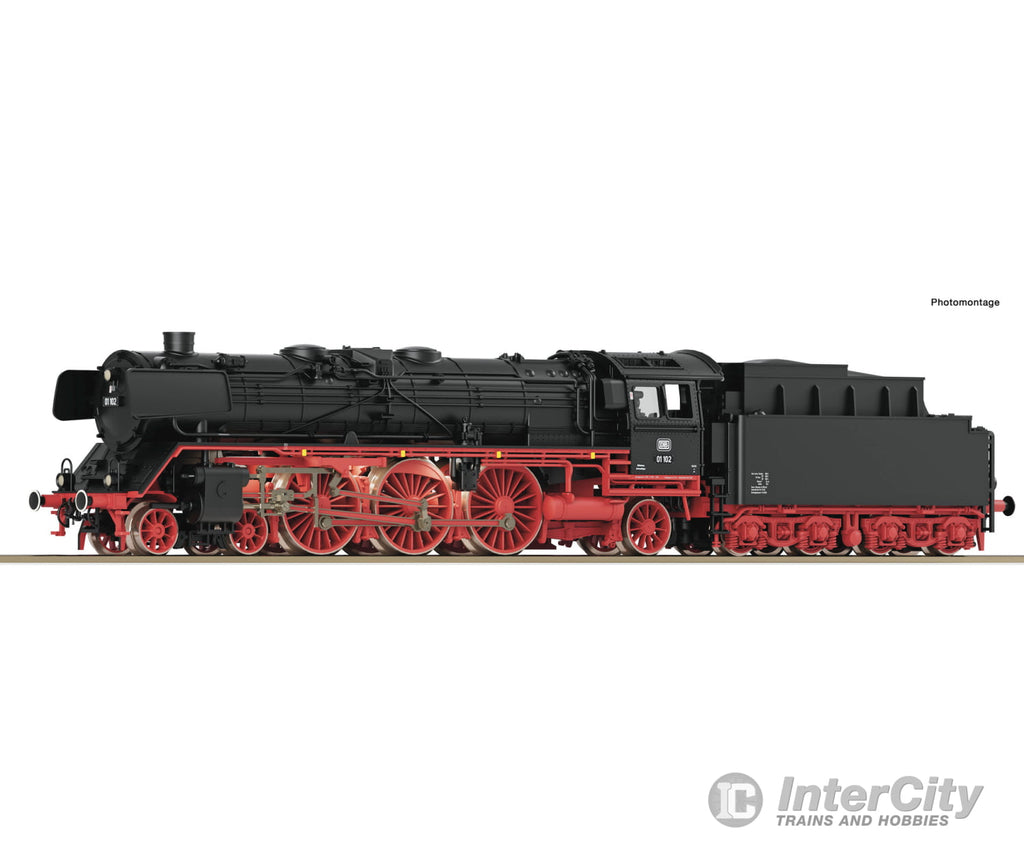

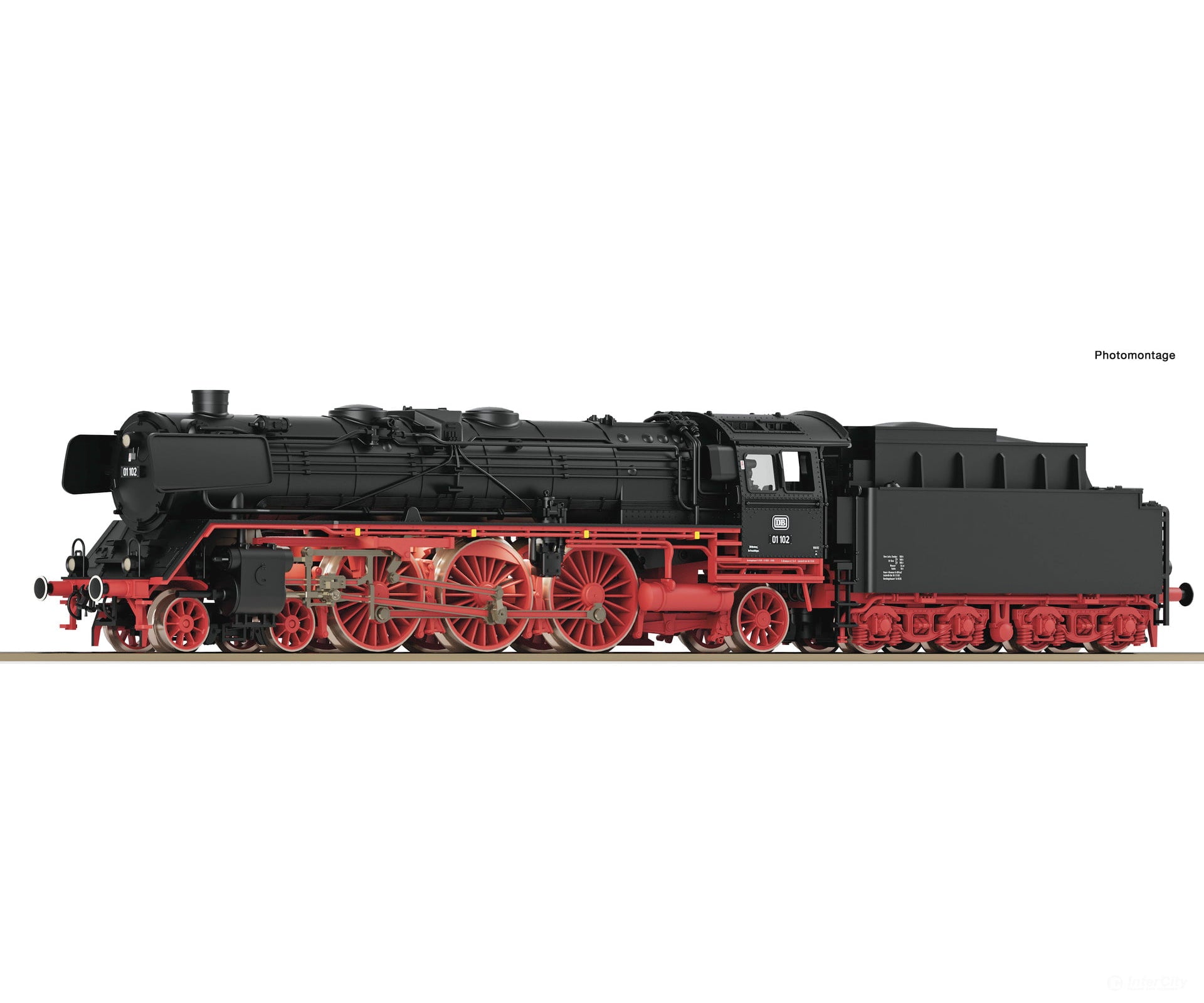

Steam locomotive 01 102 of the German Federal Railway.
New design 2023!
Design of fourth construction lot featuring reinforced brakes
Running bogie with 1,000 mm running wheels
Boiler in original design
Witte smoke deflectors
Use in high-quality express train transport
Tender 2'2' T 34
Unobstructed view between boiler and chassis
Driver's cab and valve gear lighting switchable in digital mode
The twin-cylinder engines of the class 01 are considered the first express train locomotives to be produced in accordance with the standard construction programme. After the Second World War, the DR maintained the original design with the large Wagner smoke deflectors and the air and feed pumps in the smoke chamber niches. The DB, on the other hand, shifted these over the course of time to the centre of the vehicles to facilitate a better view of the line. Almost at the same time, they replaced the large smoke deflectors with the Witte smoke deflectors and changed most of the running boards.
The first construction lots were equipped with leading wheels of 800 mm diameter and approved for 120 km/h. From 01 102, 1,000 mm leading wheels were used and the brakes reinforced, thus the allowed maximum speed could be increased to 130 km/h.
Until 1939, the locomotives ran with the riveted tenders of the 2'2' T 32 design. After that, the new deliveries received the welded 2'2' T 34 tenders, and the locomotives already in service were gradually converted as well.
- Coupling: Close coupler motion link between locomotive and tender, NEM shaft 355 with close coupling mechanism at the tender
- Minimum radius: 192 mm
- Number of driven axles: 2
- Number of axles with traction tyres: 2
- Interior fitting: Driver's cab
- Scale: N
- Epoch: III
- Railway Company: DB
General data
- Head light: Both sides of the vehicle are equipped with direction dependent triple headlights.
- LED head light: yes
- Additional light function: yes
- Decoder-Type: MS590N18
- Sound: yes
- Interior lighting: Yes, LED, Digital switchable, Driver's cab lighting
- Control: 2L - Digital
- Interface: Electrical interface for traction units Next18
- Digital decoder: Next18
Electrical
- Length over buffer: 150 mm
Measurements
