Description

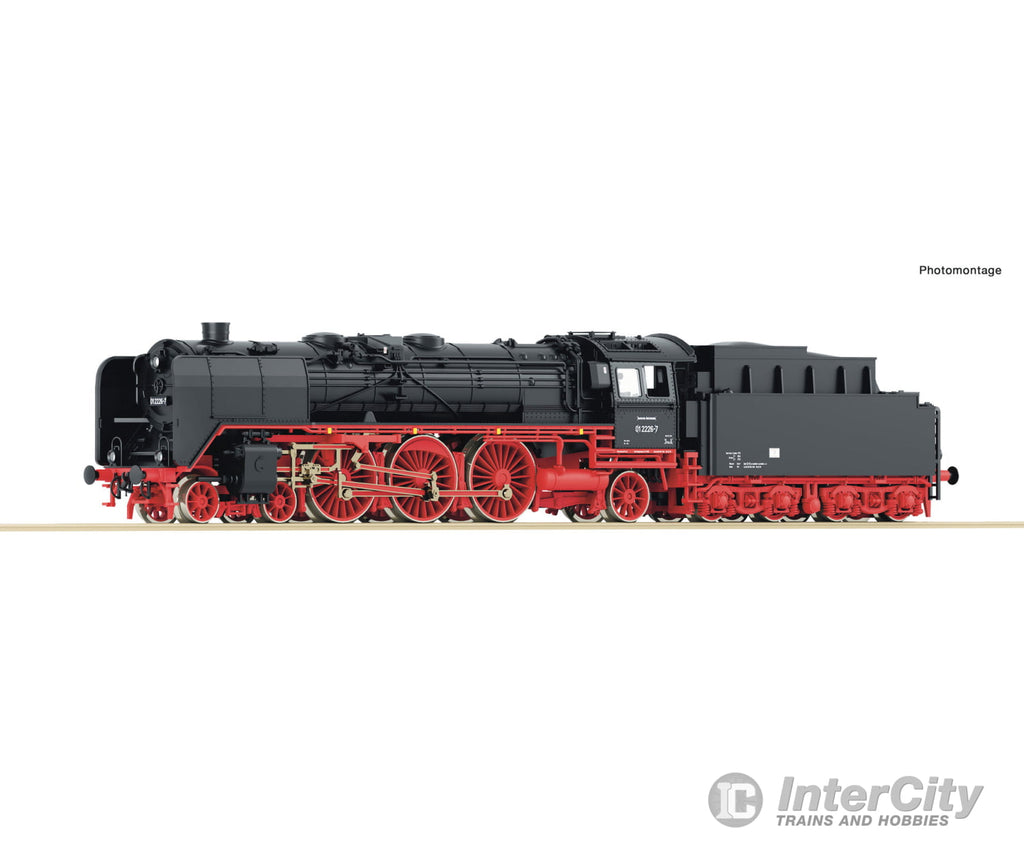

Steam locomotive 01 2226 of the railway company of the German Democratic Republic (Deutsche Reichsbahn).
Wagner smoke deflectors
Tender type 2'2' T34
Unobstructed view between boiler and chassis
Use in high-quality express train transport
Driver's cab and valve gear lighting switchable in digital mode
The twin-cylinder engines of class 01 are considered the first express train locomotives to be produced in accordance with the standard construction program. The first construction lots were equipped with wheels with an 800 mm diameter and were authorised for 120 km/h. From the 01 102, wheels with a diameter of 1000 mm were used, as were reinforced brakes, which meant the authorised maximum speed could be raised to 130 km/h. After the Second World War, the DR maintained the original design with the large Wagner smoke deflectors and the air and feed pumps in the smoke chamber niches.
Locomotive 01 226 remained with the railway company of the German Democratic Republic (Deutsche Reichsbahn) after the war. After conversion to the EDP numbering plan, it was renumbered 01 2226-7 and remained in service until 1973.
- Coupling: Close coupler motion link between locomotive and tender, NEM shaft 355 with close coupling mechanism at the tender
- Minimum radius: 192 mm
- Number of driven axles: 2
- Number of axles with traction tyres: 2
- Interior fitting: Driver's cab
- Scale: N
- Epoch: IV
- Railway Company: DR
General data
- Head light: Both sides of the vehicle are equipped with direction dependent triple headlights.
- LED head light: yes
- Additional light function: yes
- Sound: yes
- Interior lighting: Yes, LED, Digital switchable, Driver's cab lighting
- Control: 2L - Digital
- Interface: Electrical interface for traction units Next18
- Digital decoder: Next18
Electrical
- Length over buffer: 150 mm
Measurements
