Fleischmann 5170004 N z21 start digital set: Diesel locomotive class 050 with crane train, DB , Era 4 (DCC)

z21 start digital set: Steam locomotive class 051 with a crane train of the German Federal Railway.

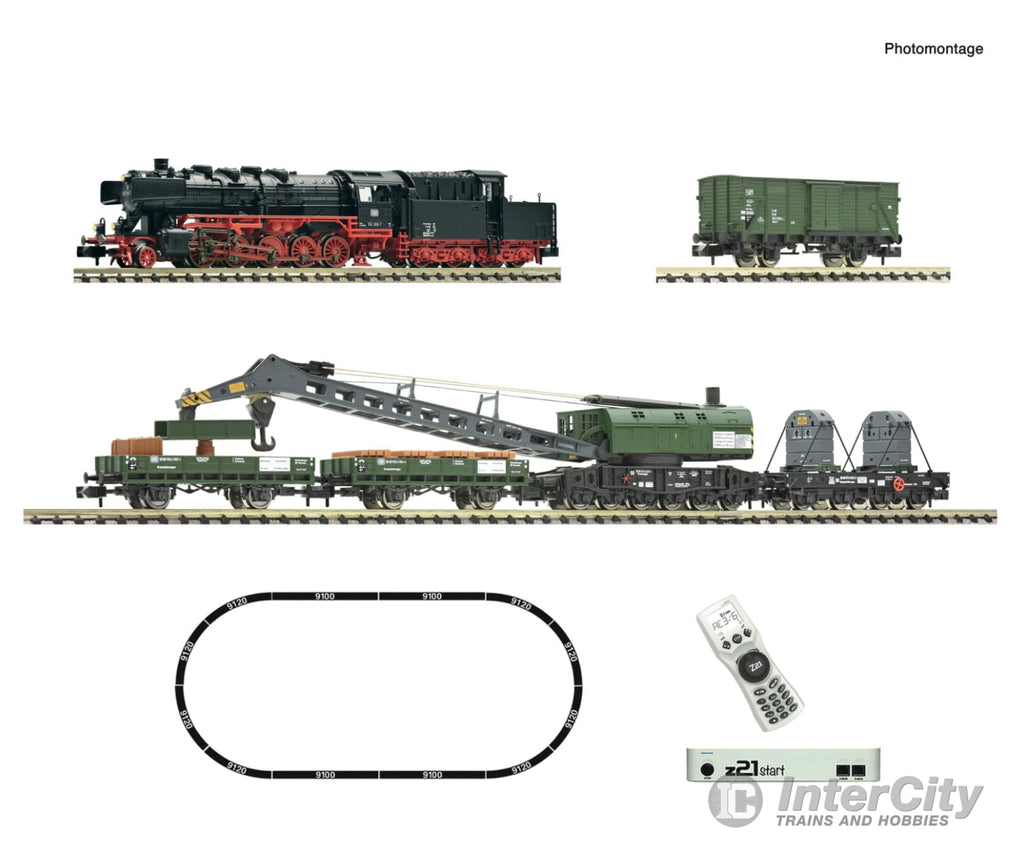

Contents:
1 steam locomotive class 051 equipped at the factory with a fixed-soldered decoder
1 construction train wagon
1 four-piece crane train
1 z21 start
1 Z21 multiMAUS
1 plug-in power supply

The crane in detail: (can be operated manually)
• Swing-out outriggers
• Rotatable crane house
• Height-adjustable crane boom
• The main flange is operated using a cable pull for lifting and lowering

Ballast bed tracks for a track oval with radius R1: 4 x 9100, 8 x 9120,
electrical connection material.
Size of track layout: 85 cm x 40 cm.

z21 is a modular design digital system:
• Begin with z21 start and Z21 multiMAUS.
• Upgrading with a WiFi router and activation code, item no. 10814 and thus use of smartphone, Tablet-PC, Z21 WLANMAUS and computer (Software-protected model train control) is possible.
• If you already have your own WiFi router and you know how to work with WiFi networks, then the activation code 10818 is sufficient for the aforementioned upgrading.

General data

• Coupling: NEM shaft 355 without close coupling mechanism
• Minimum radius: 192 mm
• Flywheel: yes
• Number of driven axles: 4
• Number of axles with traction tyres: 2
• Interior fitting: Driver's cab
• Scale: N
• Epoch: IV
• Railway Company: DB

Electrical

• Motor: 3 pole motor
• Head light: Both sides of the vehicle are equipped with direction dependent triple headlights.
• Decoder-Type: MX617/MN170
• Control: 2L - Digital
• Digital decoder: DCC

Measurements

• Length over buffer: 441 mm
