Description

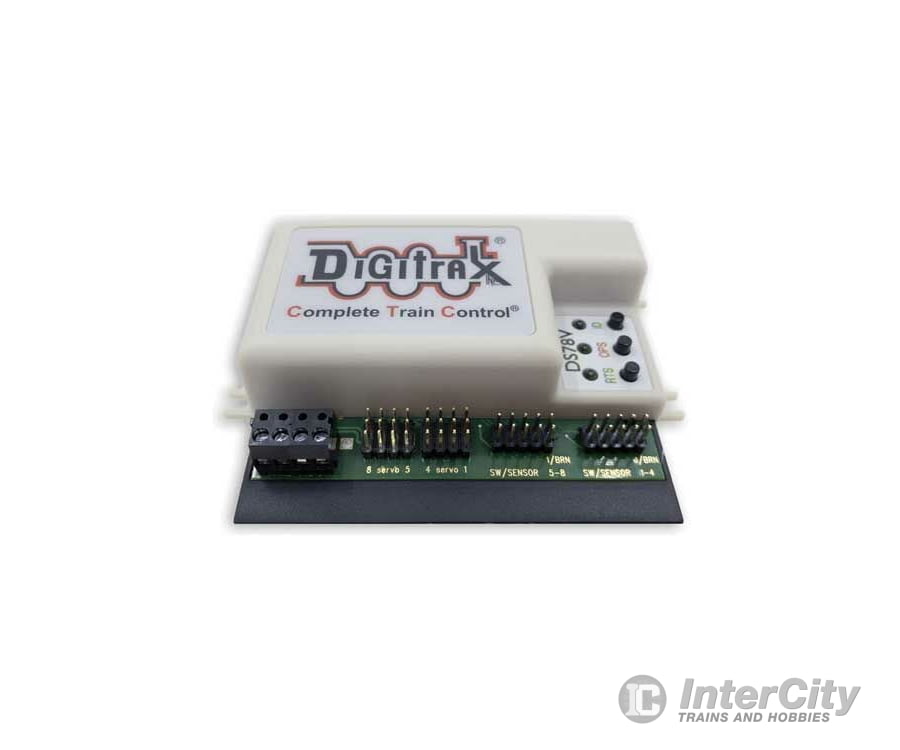

The Digitrax DS78V Eight Servo LocoNet Stationary and Accessory Decoder can control up to eight 9G servos for two-position slow-motion turnouts. The decoder is also configurable to control eight 3-position semaphore signals. DS78V works with compatible LocoNet systems and features plug and play connections, option setup switches for configuration and on-layout remote programmability via LocoNet.
- 16 System Routes, with EZ-Route setup.
- Routes remotely editable using DT602 with latest software.
- 16 input lines for Switch and Detection inputs.
- Optional 16 direct hardware Route triggers.
- Software field update/IPL over LocoNet.
- DC 2mm 12V jack for reliable power input.
- Supports two DSXC4 input connector boards and cables.
- Supports two BD4N's for block detection reporting.
- Supports 8 DSXCP1 Fascia control and direction indicators.
- Supports DSXCP1 indicating servo in motion.
- Optional DCC track input for limited feature capabilities.
