Description

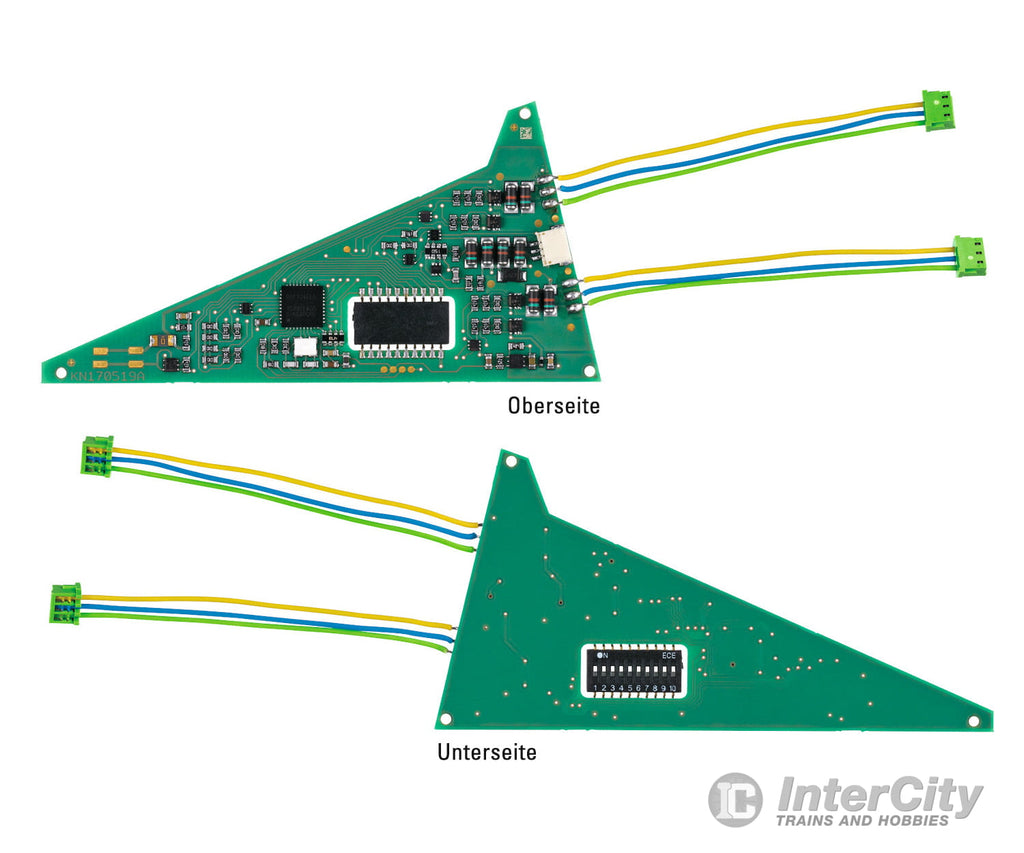

This decoder can be installed in the C Track three-way turnout (24630) with an electric mechanism. The digital formats supported are mfx, Motorola, and DCC. Connections are with plug contacts, for Märklin and Trix C Track three-way turnouts. An address can be set with coding switches (MM 1-320, DCC 1-511) as well as by CVs (MM 1-320, DCC 1-2044) using the programming track. Turnout lanterns can also be controlled. A knowledge of soldering is required here to make connections.
A digital decoder can be installed simultaneously or later on with the electric mechanism for turnouts. The decoder is simply connected with plug contacts and it can be given a custom address for each turnout (Address 1 to 256). Tools or special knowledge is not required for the installation. The digital current supply can be taken directly from the train operation contact for the turnout. This gives you a finished digital turnout that is immediately ready for use on temporary layouts.
